2. voraus.operator

To open the voraus.operator, please open a browser, it is recommended to use Chrome. If you use the default configuration, please type in the following IP address: https://192.168.1.1:8080

2.1. User interface overview

➊ Navigation bar ➋ Work window

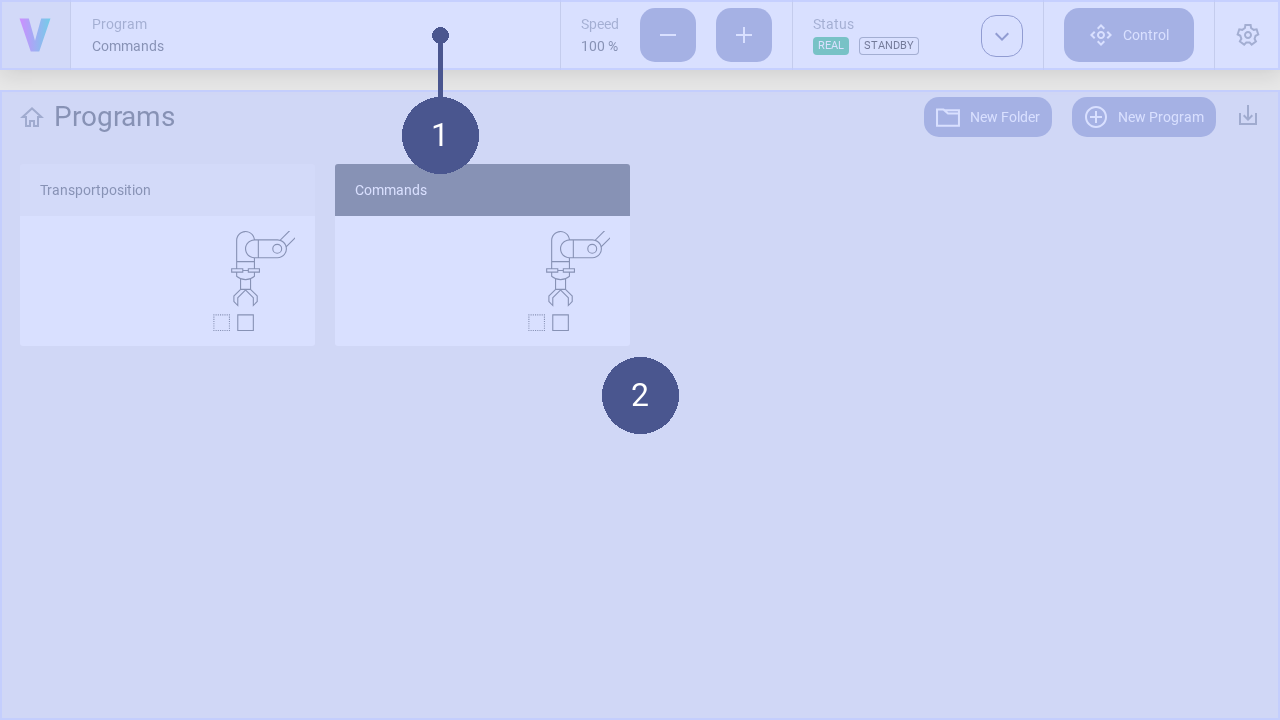

The user interface consists of the navigation bar (Fig. 7/➊) and the work window (Fig. 7/➋). The work window and its content change dynamically. Exemplary, the home screen is shown in the work window providing a quick access to applications.

In addition to the creation and management of programs, this includes manually moving of the robot and setting of the robot parameters. The navigation bar is displayed in every screen and contains the following basic commands in addition to the status message of the robot:

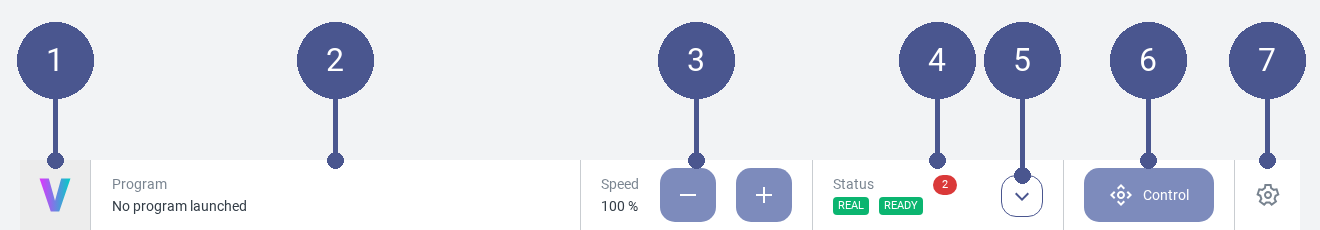

Fig. 8/➊	Logo - Return to the home screen
Fig. 8/➋	Program - Displays the active program. Click to open it.
Fig. 8/➌	Speed - Adapt the speed of the robot. The maximum value of 100 % the upper limit set in the settings / commands.
Fig. 8/➍	Status - Displays the status of the robot. Clicking the button opens the status corresponds to menu.
Fig. 8/➎	Status Quick Access - Opens the quick access menu for the operation of the robot.
Fig. 8/➏	Control - Opens the manual control menu.
Fig. 8/➐	Settings - Opens the settings menu. In this menu, the parameters of the robot can be set.

2.1.1. General Settings

In the general settings, personal adjustments can be made, such as selecting the language and system specific information are provided. Use the following steps to navigate to the general settings page:

Click on the Settings Icon to open the settings page.
Click General in the settings menu.

Language

The language can be changed with opening the dropdown menu and selecting the desired language. Supported languages are English, German, Chinese, Japanese.

Drag & Dop

Activate or deactivate the function to drag & drop commands

Software Version

See the latest software version

2.2. Operating the robot

2.2.1. Switch off the voraus.core

The voraus.core can be switched off in the user interface.

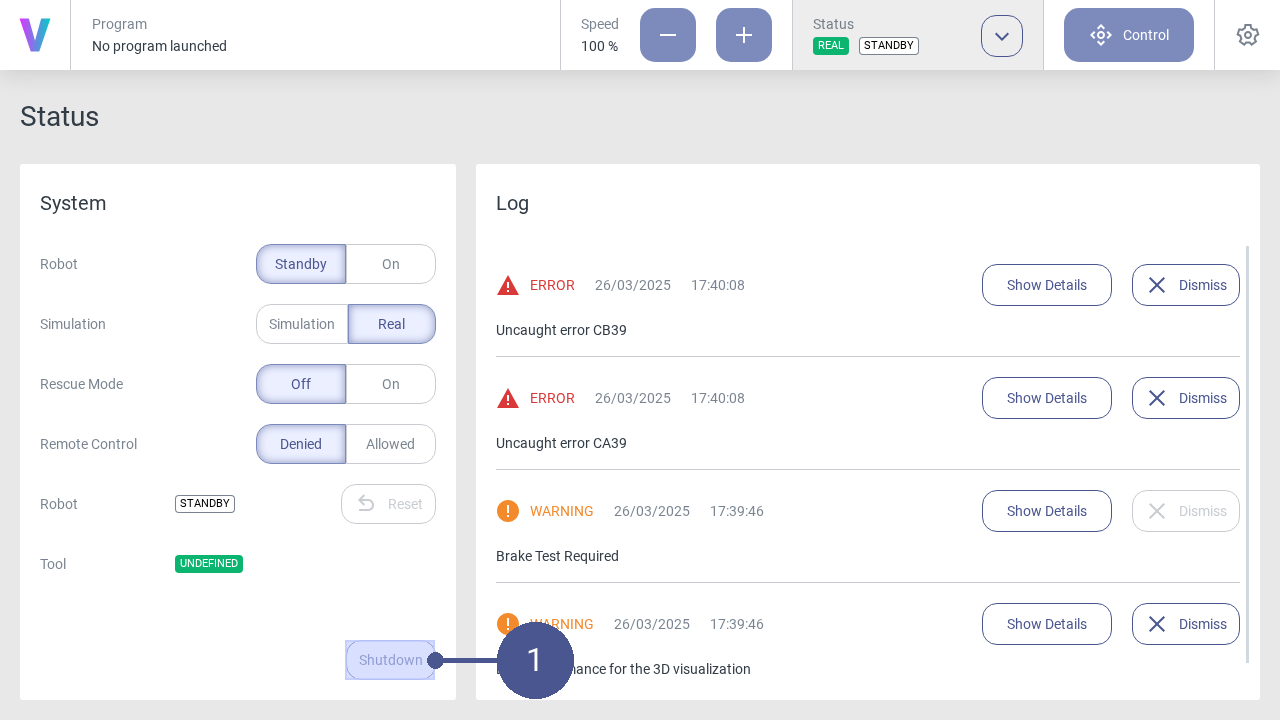

Click on the Shutdown button in the status menu (Fig. 9/➊)

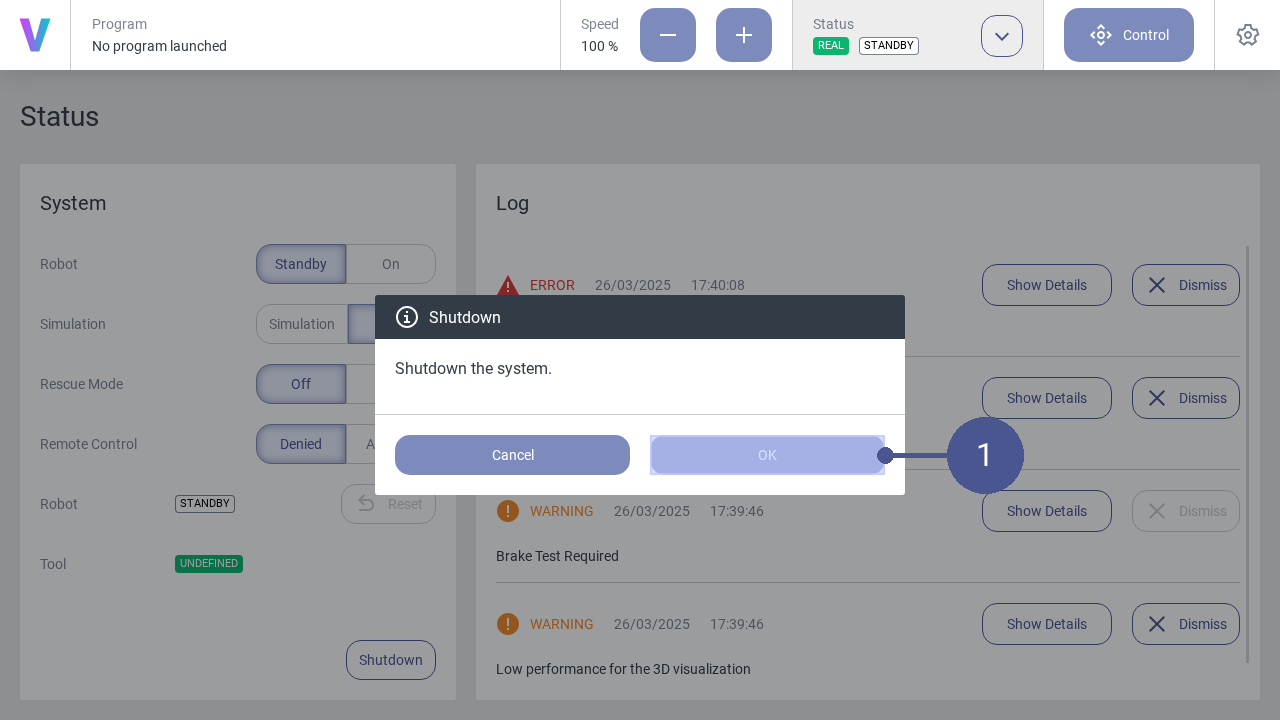

Confirm with OK in the pop-up window to switch off the voraus.core (Fig. 10/➊)

2.2.2. Manage programs

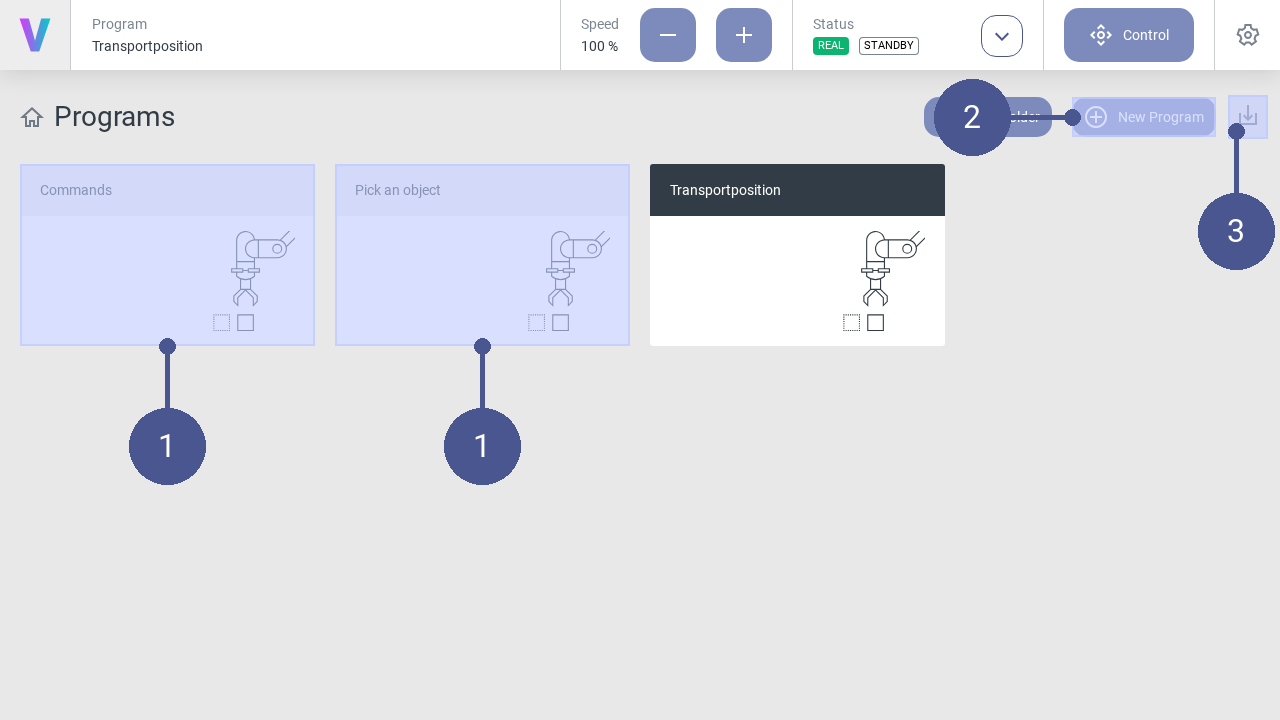

Programs (Fig. 11/➊) are displayed on the home screen of the user interface.

A new program can be created via the New Program button (Fig. 11/➋). Programs can be imported via the Import Program button (Fig. 11/➌).

To manage existing programs, click on the desired program on the main screen.

Note

The menu (Fig. 12) opens.

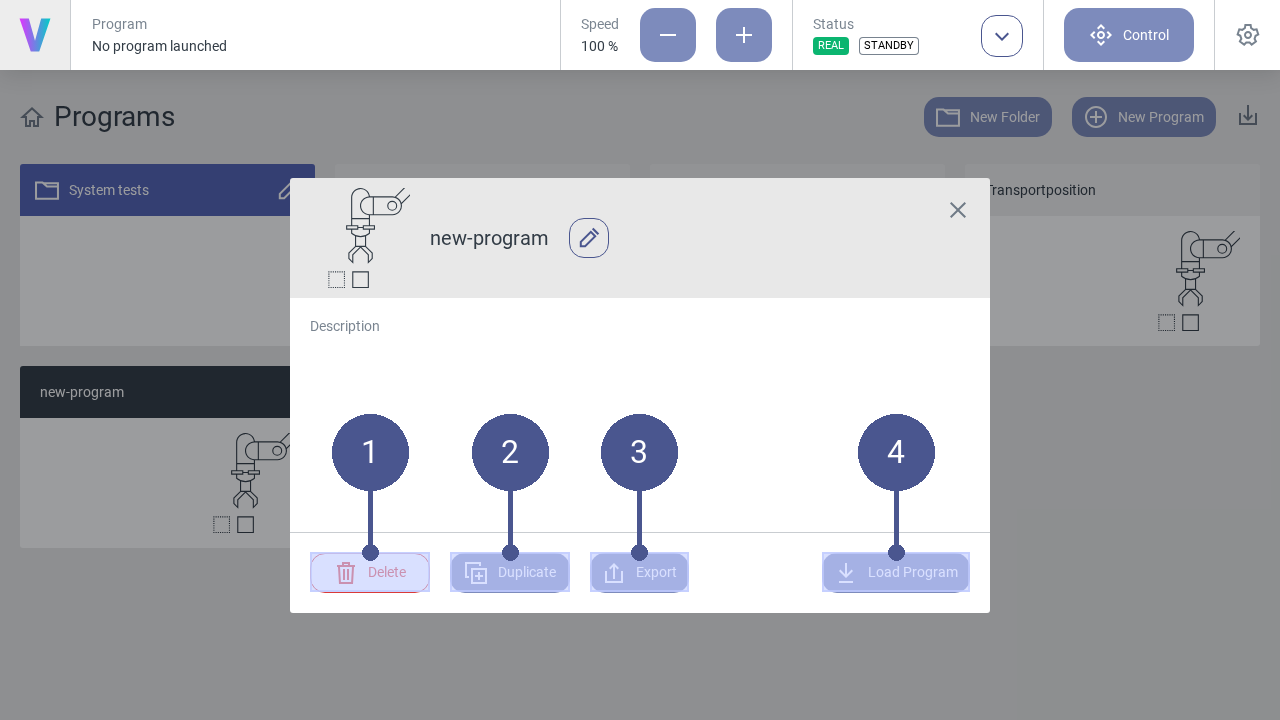

Click on one of the following buttons:

Fig. 12/➋	Delete - Delete the selected program.
Fig. 12/➋	Duplicate - Copy the selected program.
Fig. 12/➌	Export - Export the selected program.
Fig. 12/➍	Load Program - Load the selected program.

Folders

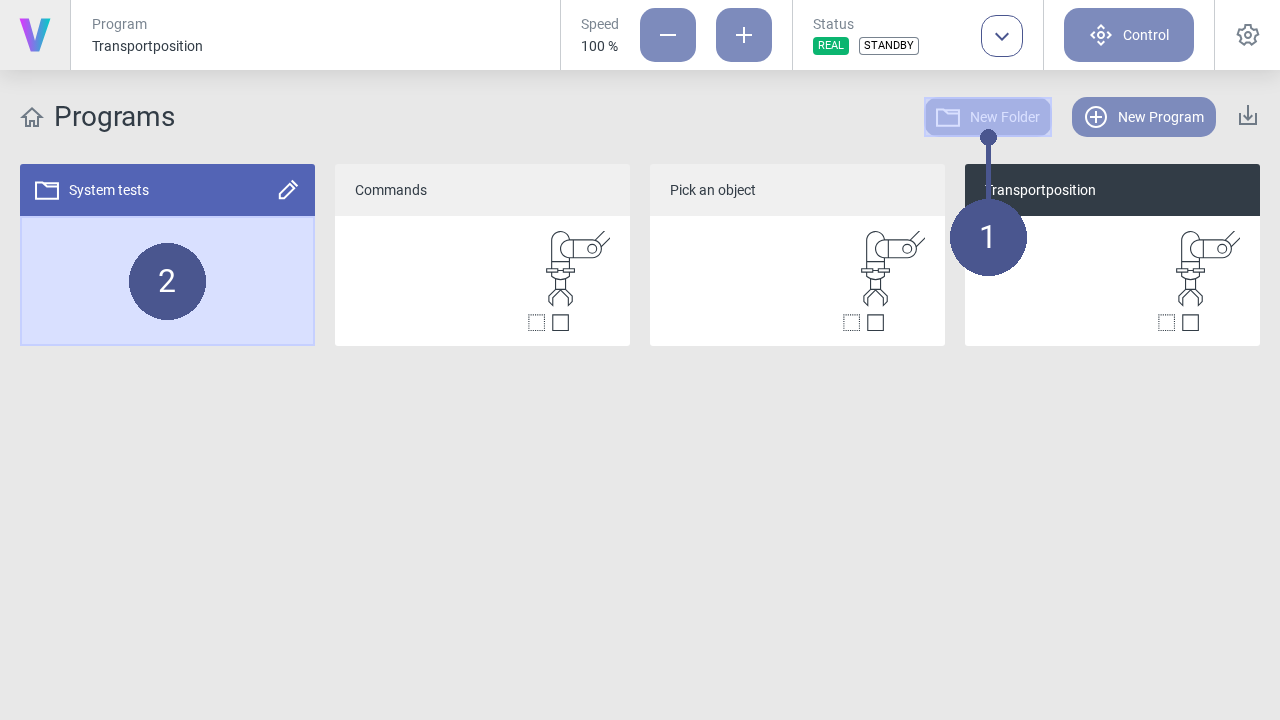

Folders can be created on the home screen in addition to programs. They are useful for grouping and sorting programs.

To create a new folder:

Press the New Folder button (Fig. 13/➊).
Enter a meaningful name.
Press the save icon.

Programs can be moved to folders (Fig. 13/➋) via drag and drop. To move a program out of a folder, it must be dragged and dropped onto the navigation title Programs.

It is possible to rename and delete folders by clicking the edit icon. Please note deleting a folder deletes all included programs too. This cannot be undo. Folder cannot be deleted when an included program is currently loaded.

2.2.3. Configure Digital Inputs & Outputs

The digital inputs and outputs are located within the I/O section in the settings menu Fig. 14. On the I/O page, all inputs (In) and outputs (Out) are displayed.

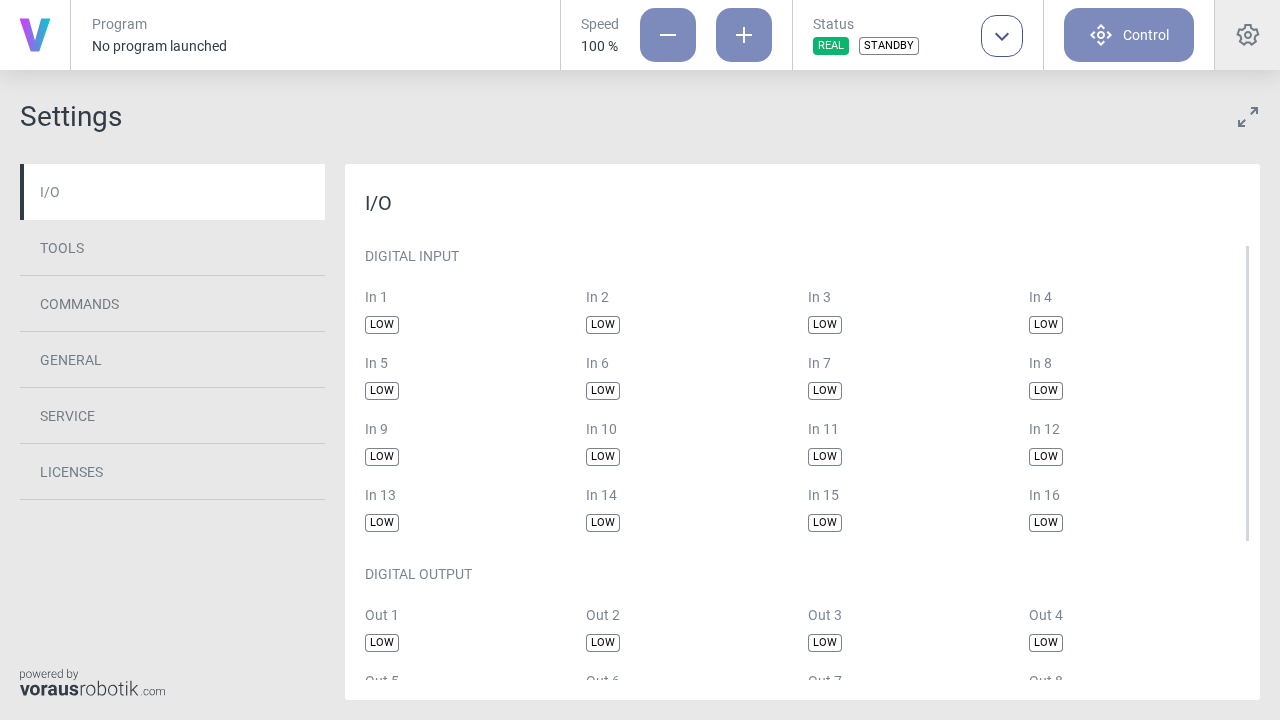

Fig. 14 Digital inputs & outputs overview

The status of each digital I/O channel can be in one of two states:

LOW: The I/O signal is at a low voltage level, typically representing an off or inactive state.
HIGH: The I/O signal is at a high voltage level, typically indicating an on or active state.

Digital Inputs

Digital inputs are used to receive signals from external devices or sensors. These inputs are essential for capturing data from your environment or interacting with other equipment like for example conveyor belts or light barriers.

Digital Outputs

Digital outputs are used to control external devices or machines, allowing the voraus.core to trigger actions in response to its programmed tasks. Digital outputs can be configured in multiple ways:

Clicking on the status badge of a digital output on the I/O page, to toggle the value manually. By clicking the badge a popup will open to double check if you really want to change the value. Press OK to submit or press Cancel to discard the action.
Set one or multiple digital outputs in a program by using the Set Digital Outputs command.

Safety Precautions

When configuring digital inputs and outputs, ensure that all safety guidelines and protocols are followed. Incorrect I/O settings can lead to unintended actions or hazards. Always conduct thorough testing and verification to guarantee the robot’s safe operation.

2.2.4. Configure Tool

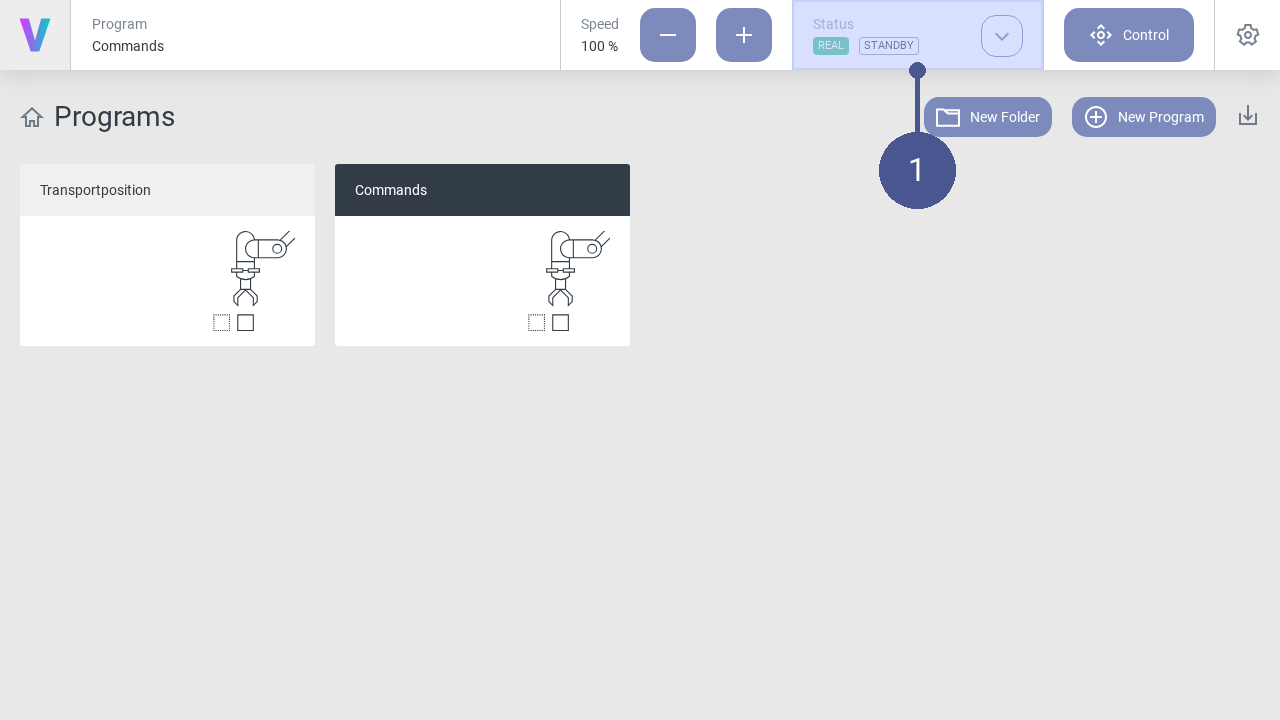

Click on the Status button on the home screen (Fig. 15/➊).

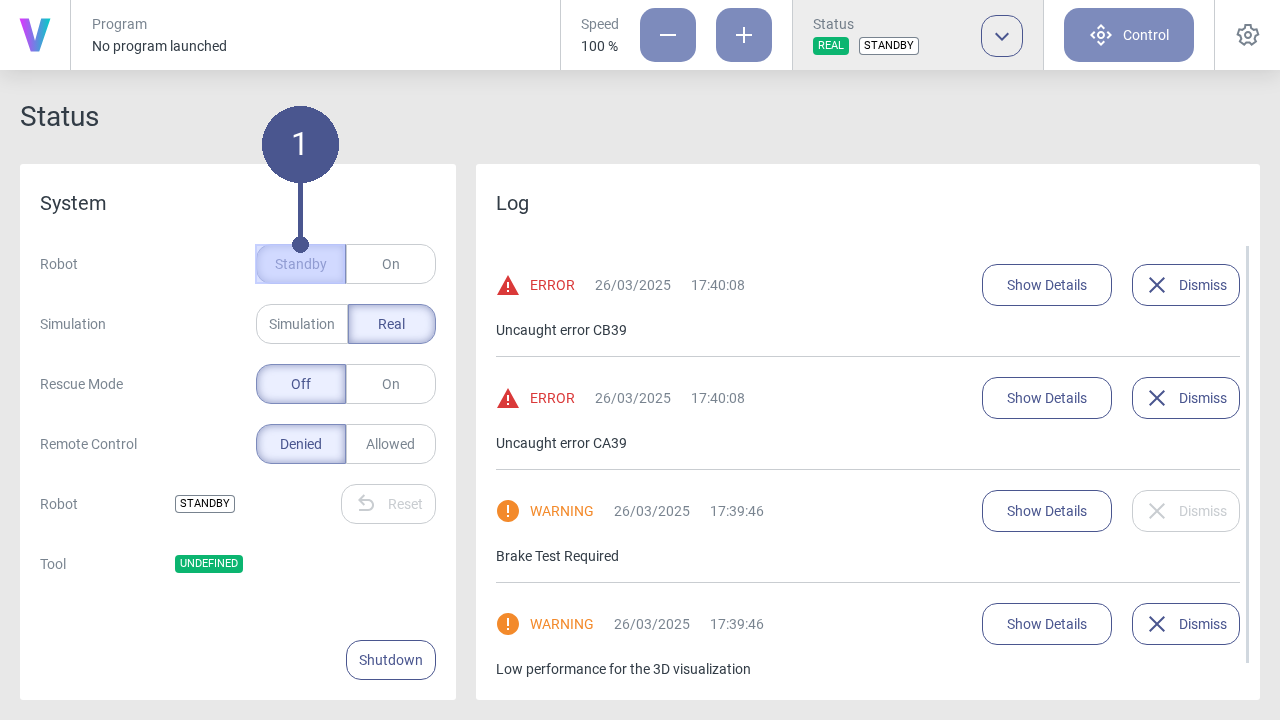

Click Standby in the status menu. (Fig. 16/➊)

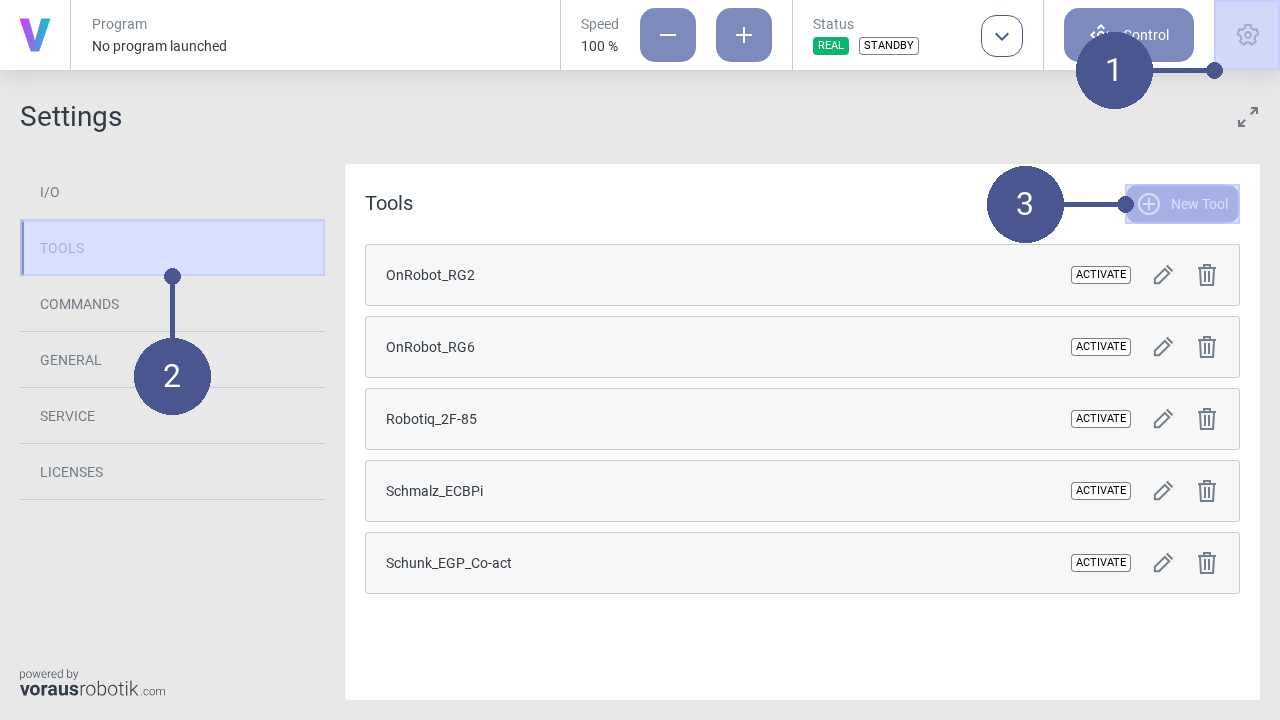

Click the settings icon in the navigation bar (Fig. 17/➊), to open the settings menu.
In the settings menu, click on TOOLS in the left tab to open the window of the tool’s settings (Fig. 17/➋).
Click on New Tool (Fig. 17/➌).

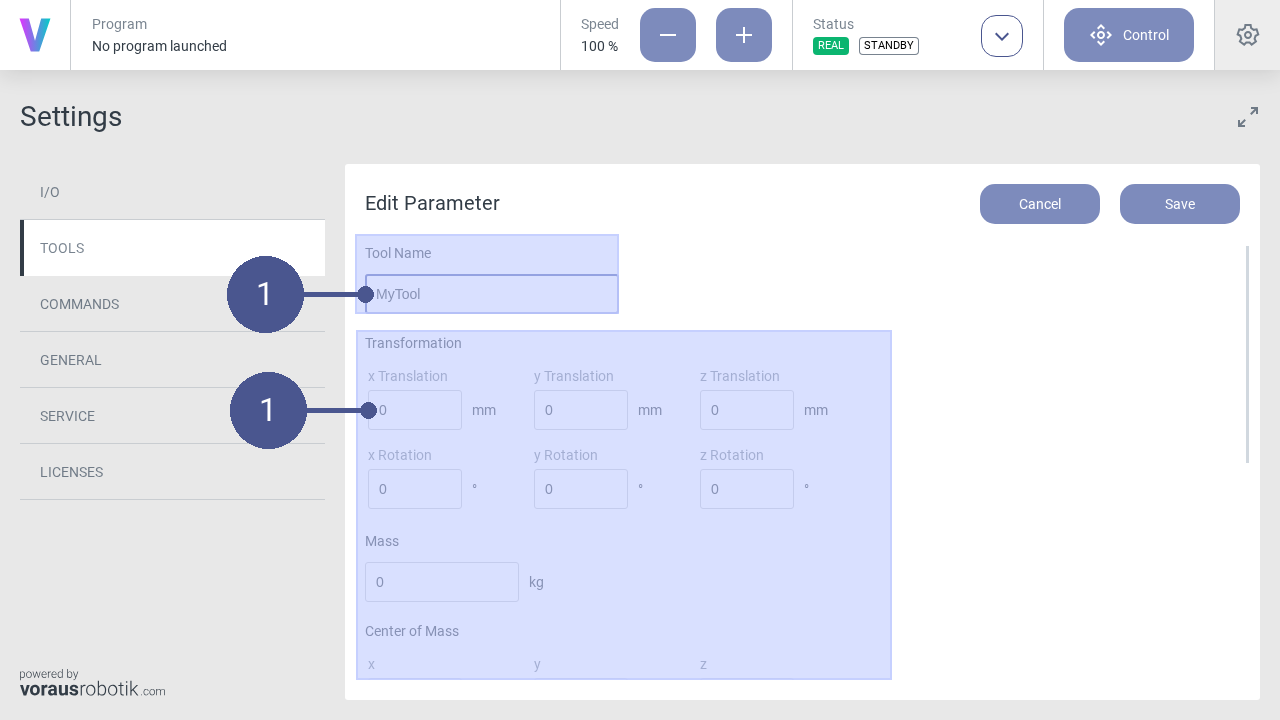

Name the tool and enter its parameters (Fig. 18/➊).

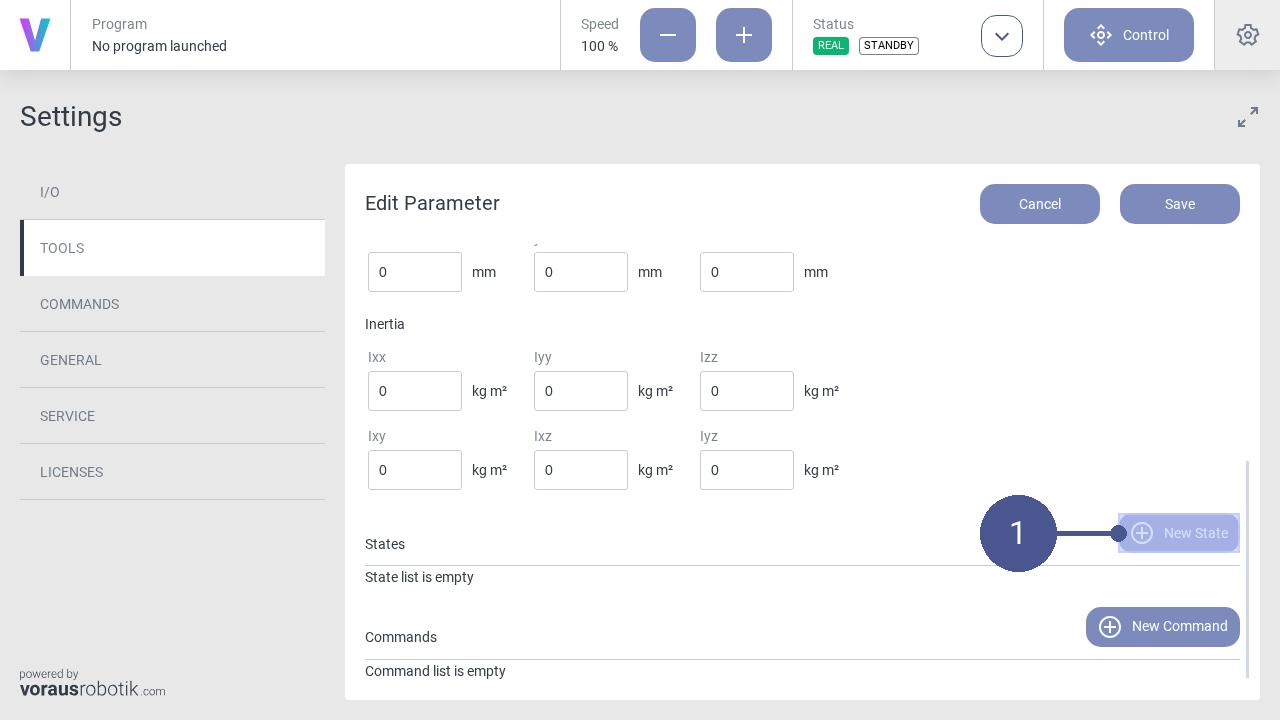

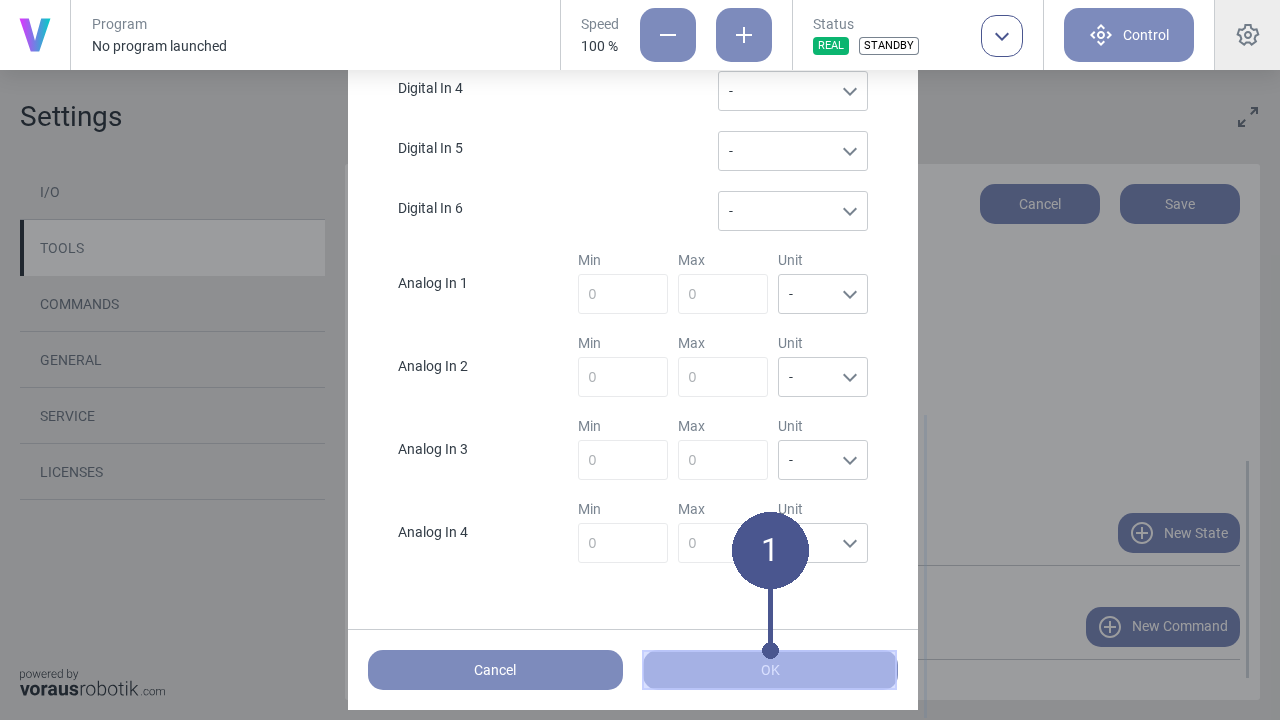

Click New State to open the state menu (Fig. 19/➊).

8. In the state menu, define the states of the digital outputs and the digital inputs according to the operator’s specifications and confirm with OK (Fig. 20/➊).

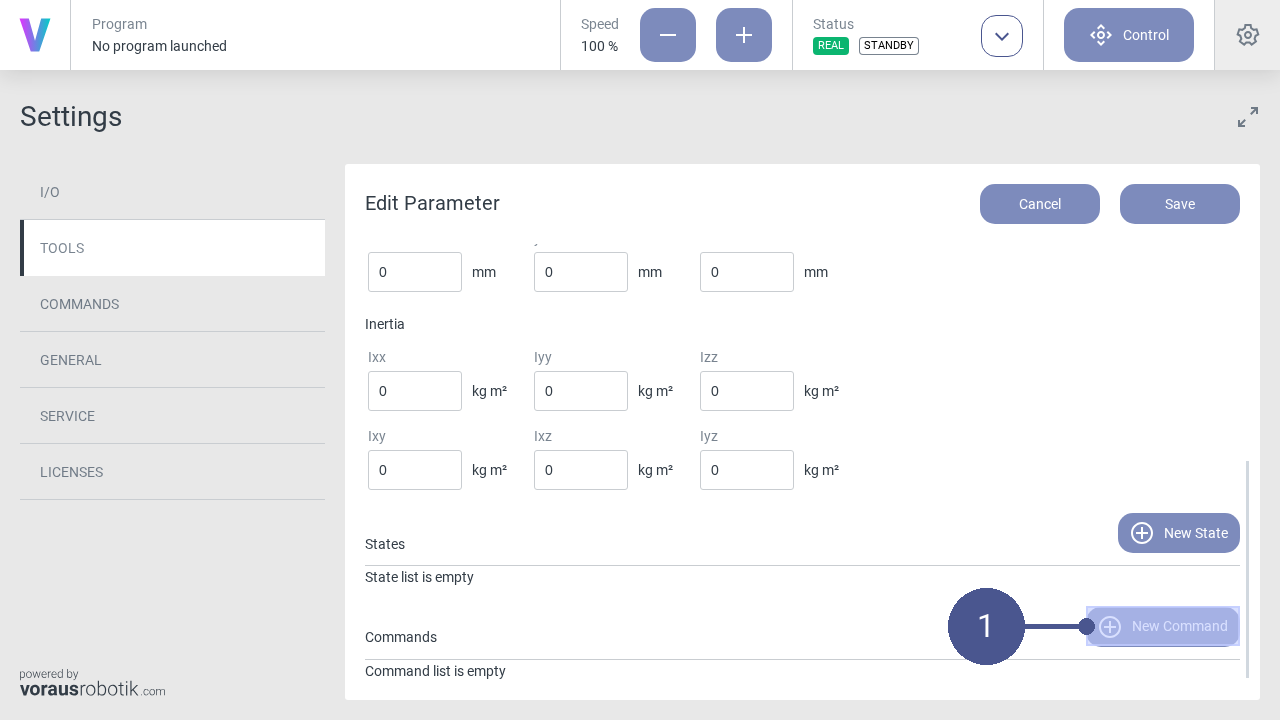

Click New Command to open the command menu (Fig. 21/➊).

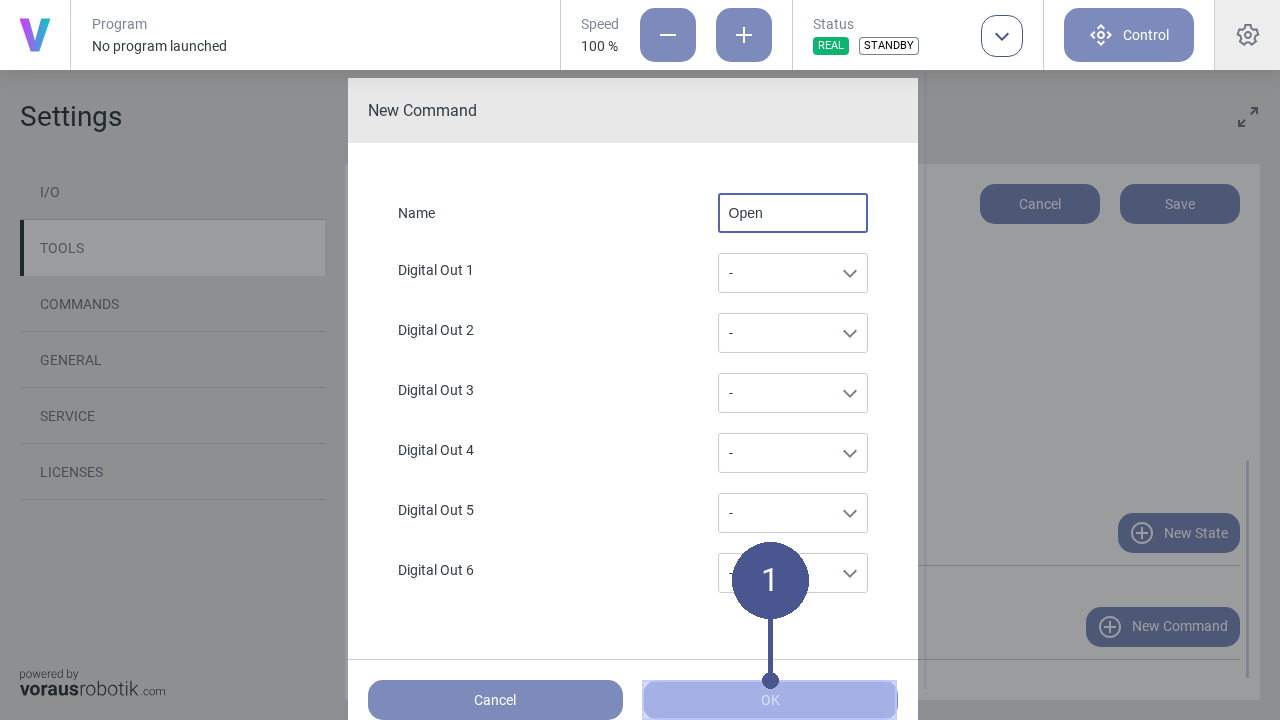

In the command menu, define the states of the digital outputs according to the operator’s specifications and confirm with OK (Fig. 22/➊).

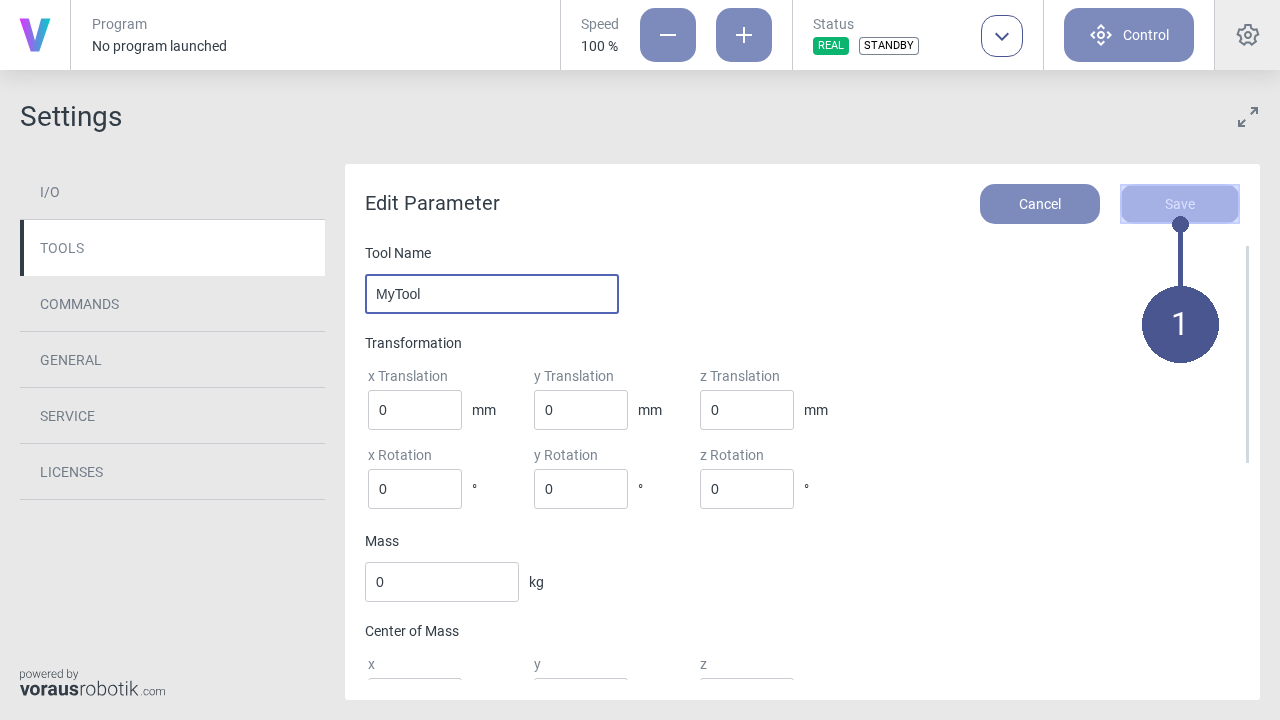

Click Save to save the tool parameters (Fig. 23/➊).

2.2.5. Camera Settings

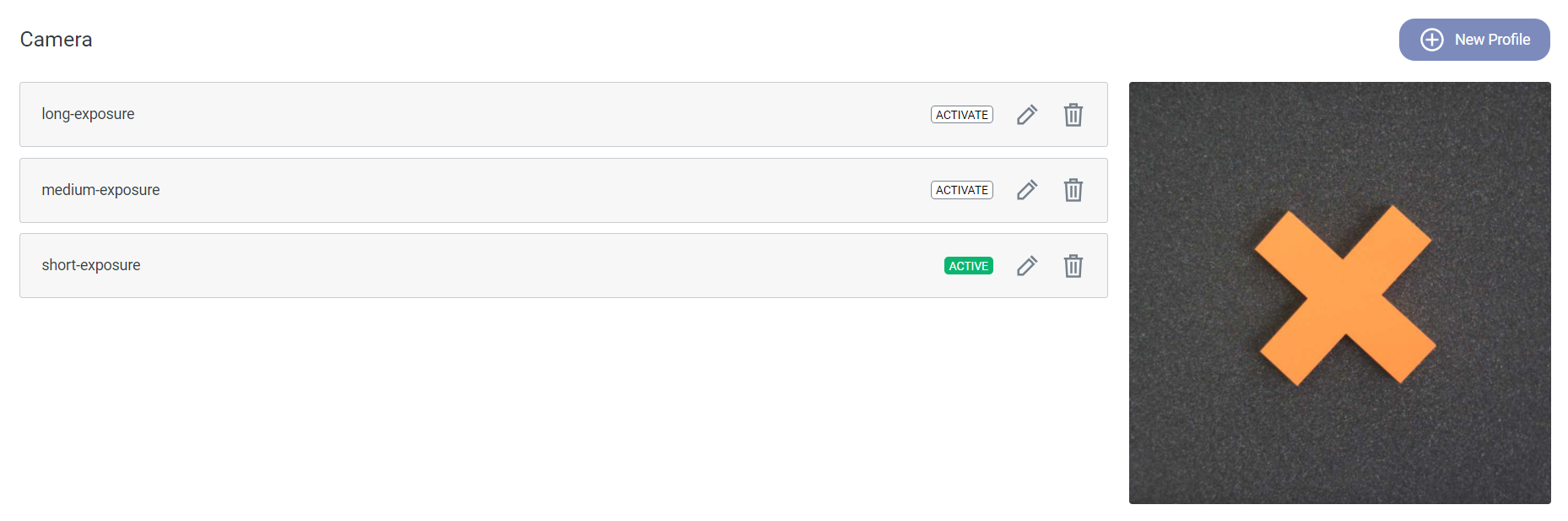

Fig. 24 Overview of the camera setting profiles

Description

Depending on the lighting conditions of the environment and the contrast between any objects and the background, it can be beneficial to tweak the camera settings. You can edit the default camera settings and define new ones within the settings menu. To access it, click the settings icon in the top right corner of the HMI and select the CAMERA section. All available camera setting profiles are listed in this menu. To create a new profile, press the New Profile button on the right (see Fig. 24). To edit or delete existing profiles, click the edit icon edit respectively the delete icon delete next to the profile name. By clicking the ACTIVATE badge you can switch between the defined profiles.

Parameterization

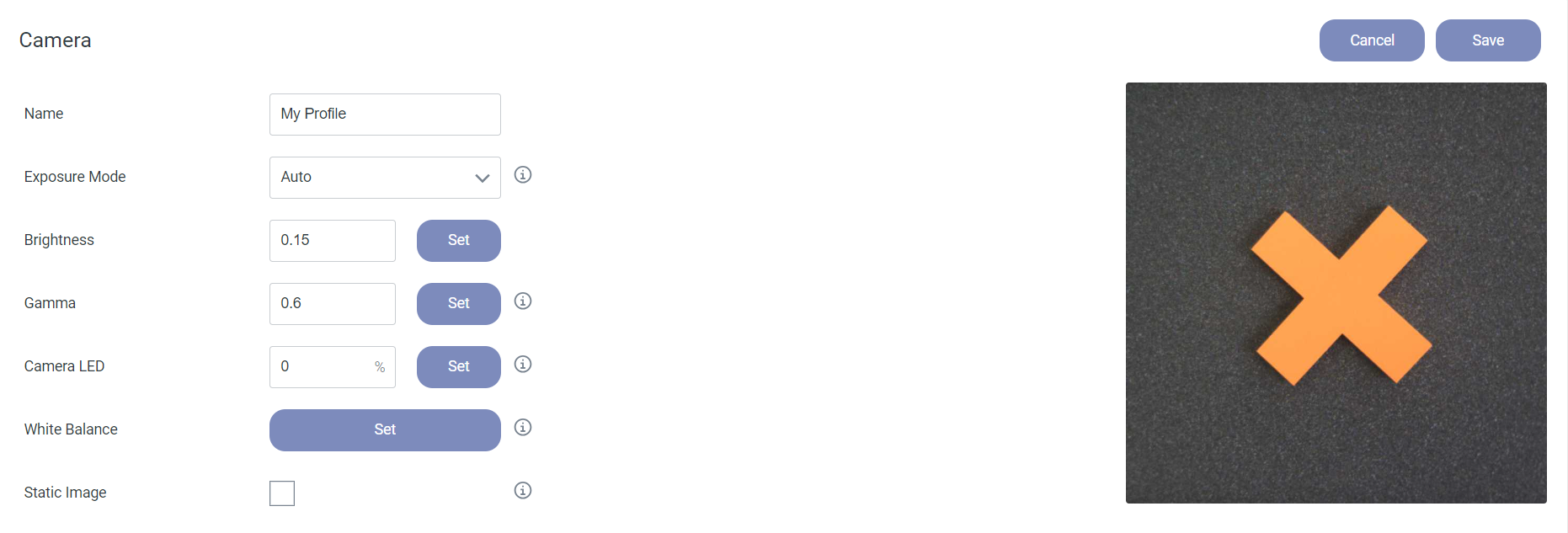

Fig. 25 Interface of a camera setting profile

Name: Enter a name for the profile.
Exposure Mode: Choose between “Manual” and “Auto”.
- Auto: The exposure time is chosen automatically. You can adjust the overall brightness of the camera frame by editing the Brightness value. The brightness factor can be set to any value in the range from 0.1 to 1.0.
- Manual: You can set the Exposure Time [µs] value manually. The valid range is 10 µs to 40.000 µs.
Gamma: Value for the gamma correction of the incoming camera frames. Higher values let the image appear brighter, lower values darker. The valid range is from 0.25 to 2.0.
Camera LED: Percentage of the LED brightness between 0 and 100. 0 means the LEDs are switched off.
White Balance: The Set button adjusts the white balance. For this the camera has to be targeted at a white surface. The white balance is used to eliminate tint and improve the accuracy of the color representation.
Static Image: If checked the execution of the vision command inside a program is delayed until no more movement is detected in the camera frame.
Save: Save the current camera settings.
Cancel: Discard any changes.

Values of the Default Settings

Exposure Mode	Auto
Brightness	short-exposure: 0.15 medium-exposure: 0.3 long-exposure: 0.6
Gamma	0.6
Camera LED	0
Static Image	Off

Additional Information

By deleting all camera profiles, the three default settings short/medium/long-exposure are restored automatically.
The Static Image option can be useful in applications with high robot velocities.

2.2.6. Create a new program

Personnel: System integrator

Requirements

The safety configuration for the new program has been correctly parameterized by the system integrator.
The robot is in manual operating mode.

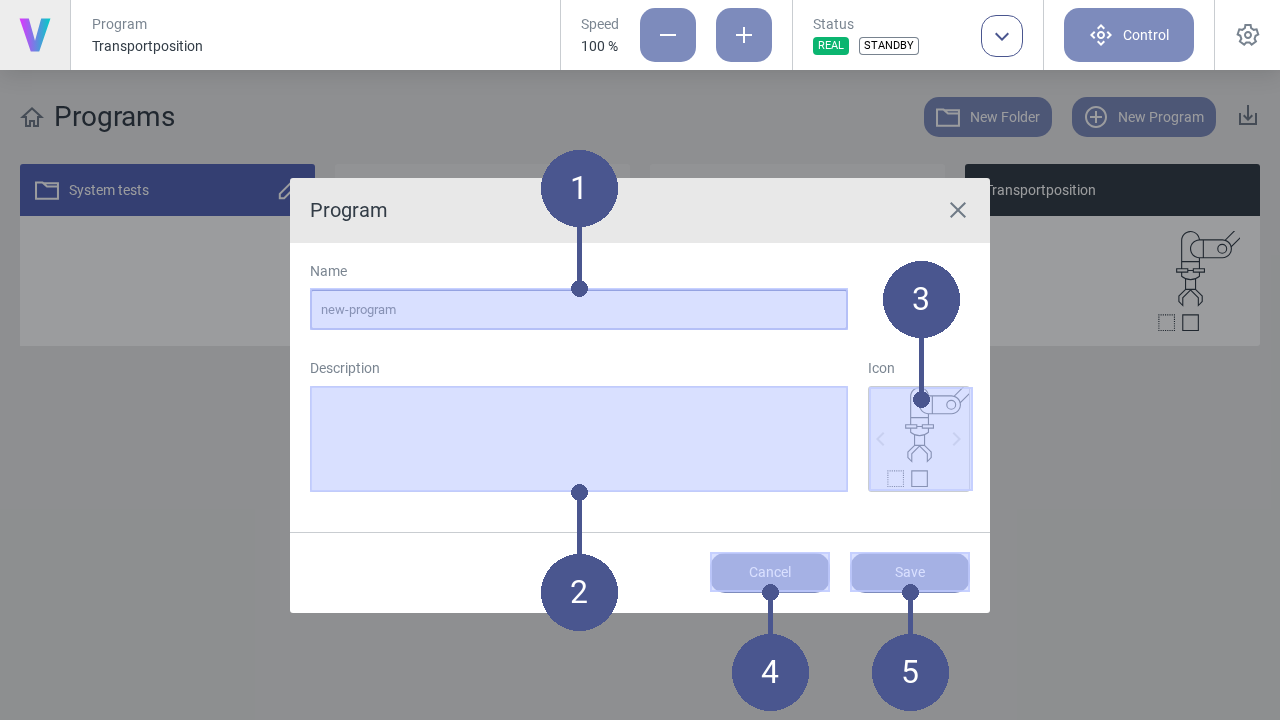

To create a new program, click New Program on the main screen. The menu (Fig. 26) opens.
Enter Name and Description of the program function (Fig. 26/➊ + ➋).
Select an appropriate Icon by using the arrows (Fig. 26/➌).
Click Save to create the program (Fig. 26/➎). Otherwise click Cancel to return to the main screen (Fig. 26/➍).

5. In the program menu (right half of the screen), define the program sequence by inserting individual command blocks (Fig. 27).

To do so, proceed as follows:

6. In the tab select the required command category by clicking on it (Fig. 27/➊). The following command categories are available:

MOTION

Define movement patterns of the robot.

VISION

Use the camera on the media flange, e.g. for object detection.

LOGIC

Select logic commands such as repeat, to execute a group of commands in a loop.

TOOL

Control the selected tool.

OTHER

Create a group of commands to improve the program´s readability.

CUSTOM

Apply your individual commands.

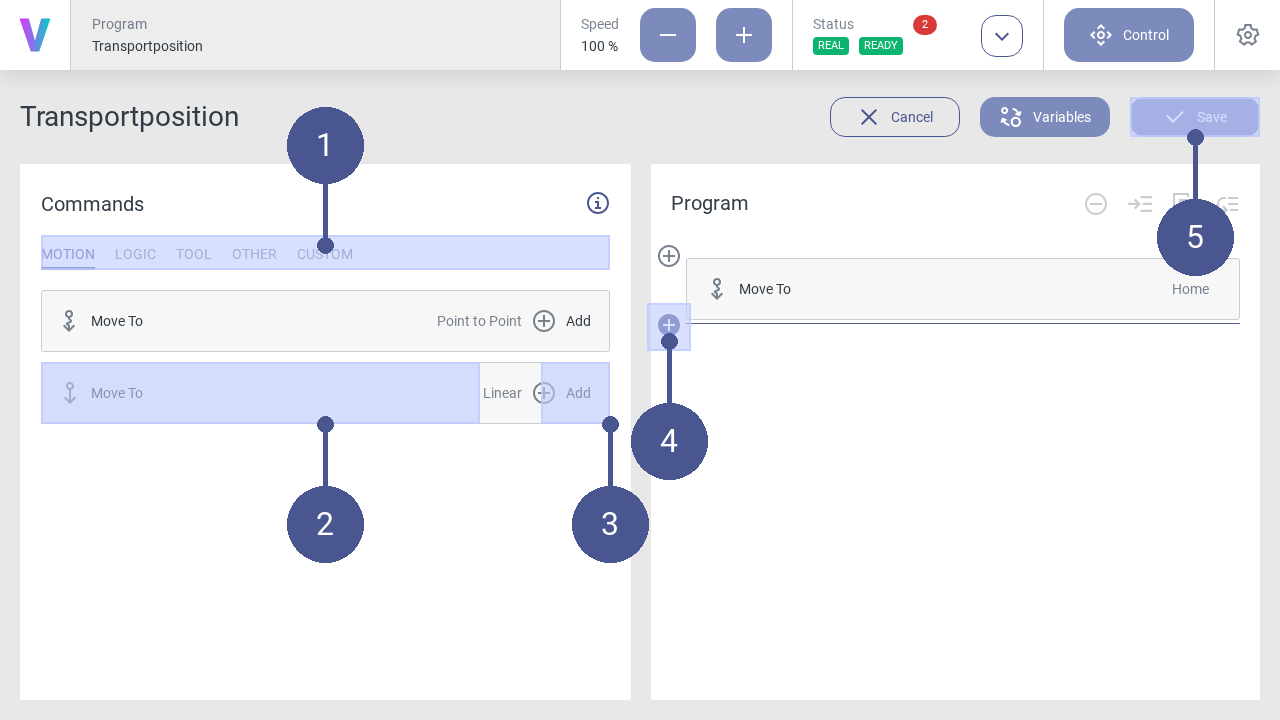

Select the desired command block (Fig. 27/➋) and add it to the program sequence by clicking on the plus symbol (Fig. 27/➌) The new command block is added to the program flow at the position of the colored cursor (Fig. 27/➍).
After assigning all the required command blocks, Save your final program and enjoy its impact (Fig. 27/➎).
The newly created program can be loaded and executed by the operator on the main screen.

2.2.7. Load and execute programs

Personnel: Operator

To load a program, click on the button of the desired program on the home screen.

Note

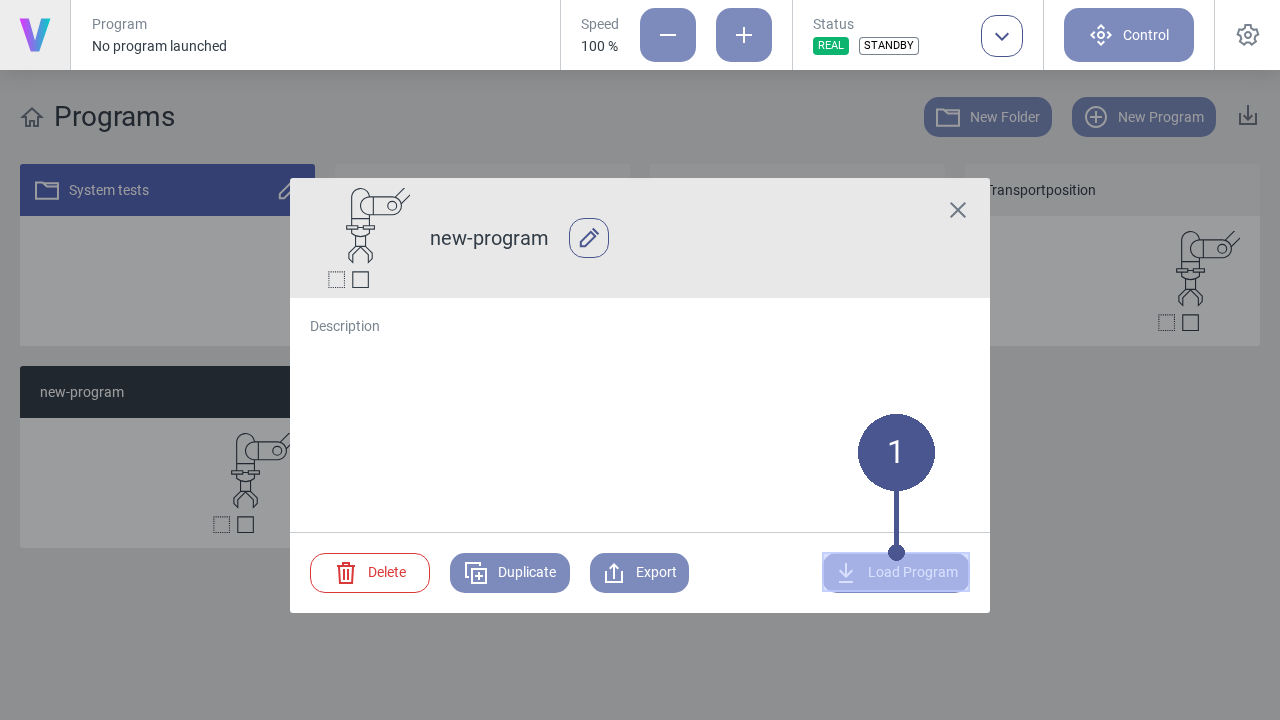

The pop-up (Fig. 28) opens.

2. Click the Load Program button to open the selected program (Fig. 28/➊).

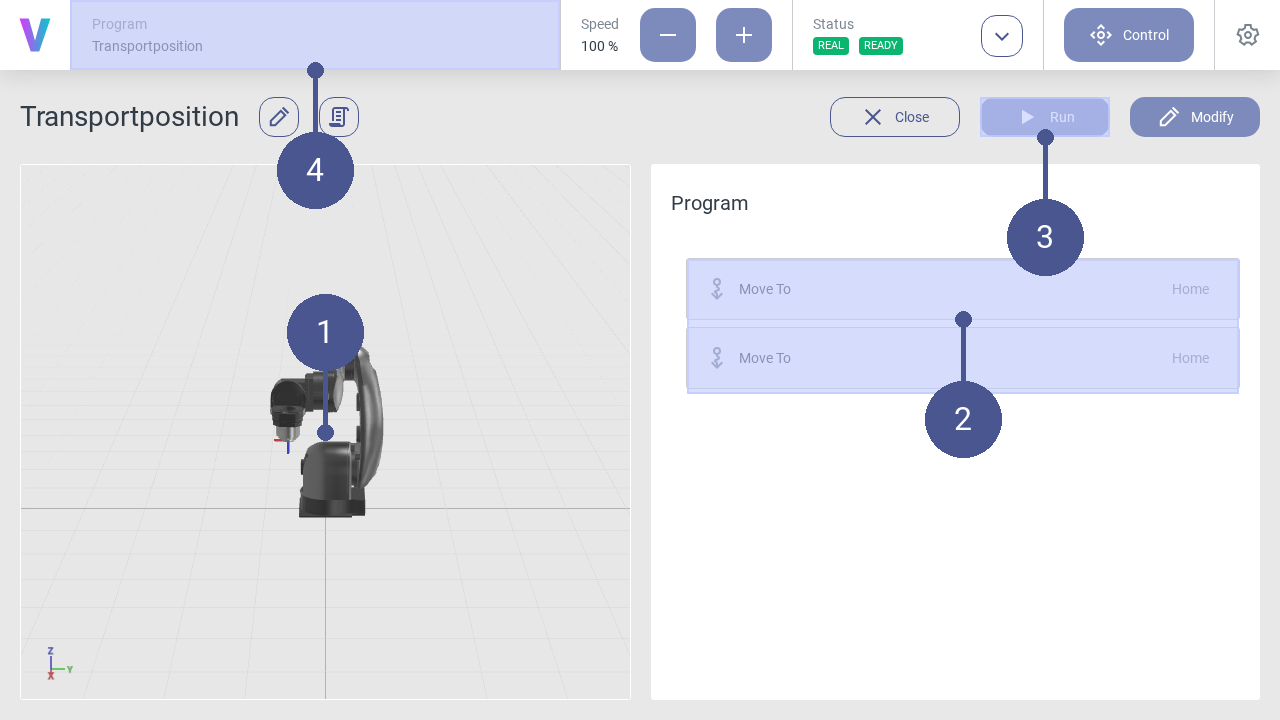

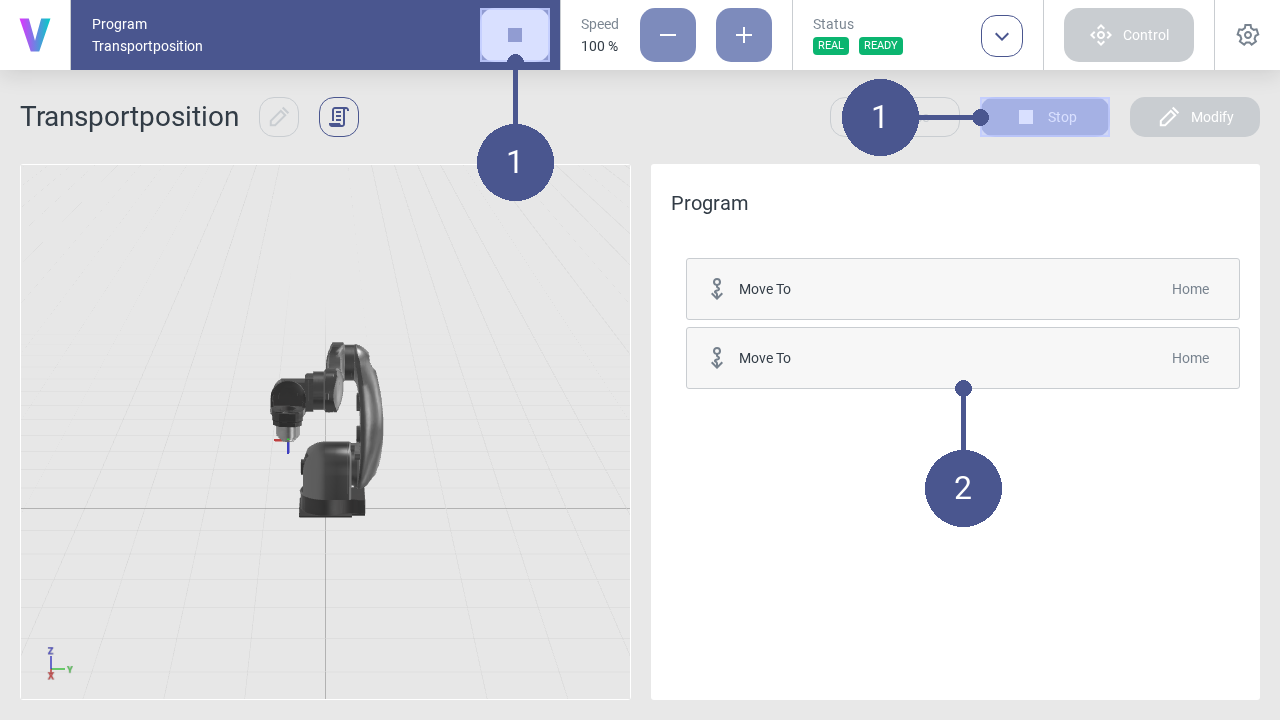

In the program menu (Fig. 29), the program sequence is displayed as a sequence of the individual command blocks (Fig. 29/➋).

To start the program, click Run (Fig. 29/➌).

The robot executes the program according to the sequence of the command blocks.

Note

Virtual robot

In the left menu section, the movements are displayed using a virtual robot model (Fig. 29/➊). In the navigation bar, the currently loaded program is displayed at any time (Fig. 29/➍).

To stop the program, click the Stop button in the navigation bar or the program menu (Fig. 30/➊).

Note

Program sequence

The currently executed command sequence is displayed via a colored time bar (Fig. 30/➋).

2.2.8. Edit program

Personnel: System integrator

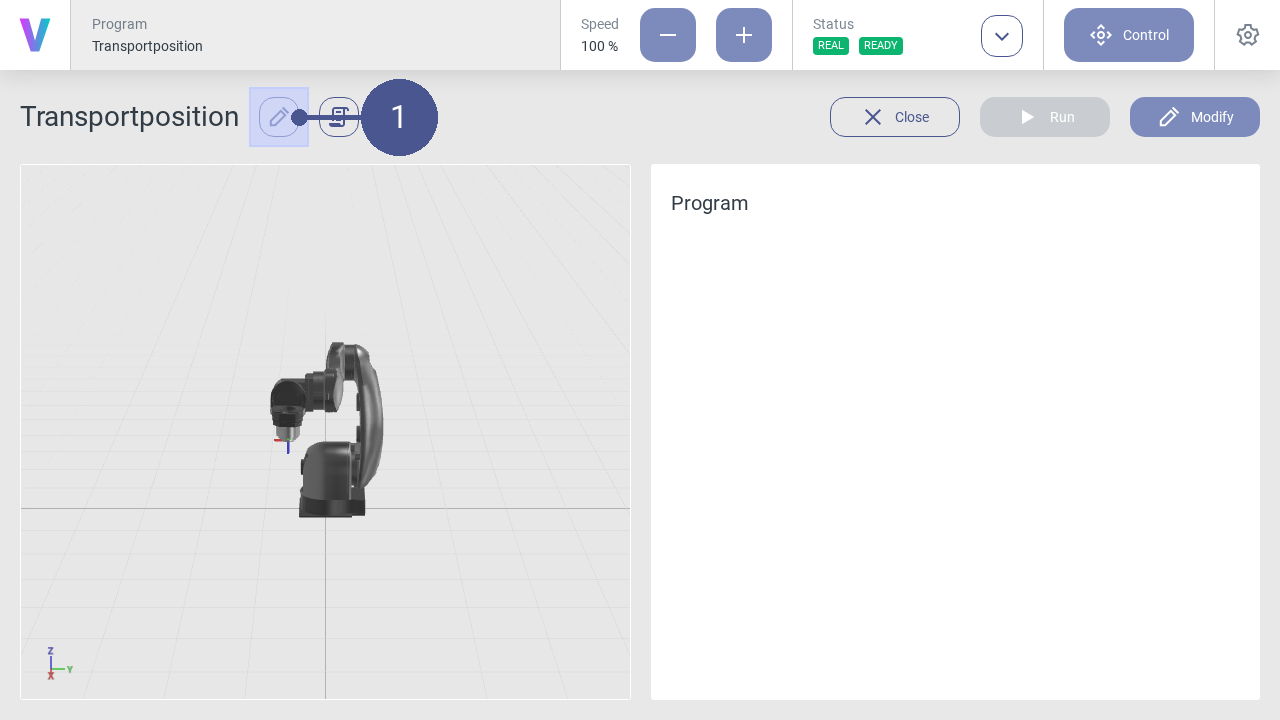

To edit a program, click on the pencil icon next to the program name (Fig. 31/➊).
Enter a new name or change the program description if needed.

Note

The pop-up menu opens (Fig. 32).

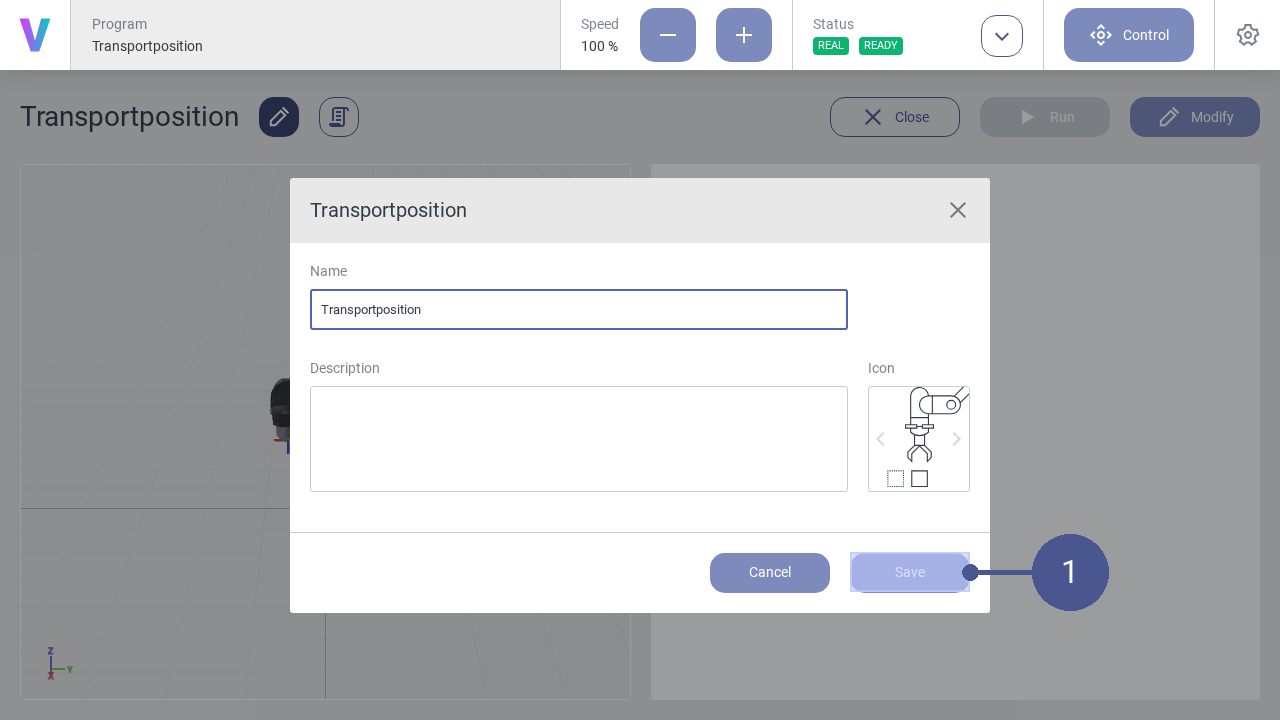

Click Save to save the changes (Fig. 32/➊).

Note

The program can also be edited by clicking on the icon next to the program name in the pop-up window within the home screen.

2.2.9. Move robot manually

Warning

Risk of injury due to manual movement of the robot!

When moving the robot manually, there is a possibility that the robot is moved in an unsafe environment without prior risk assessment. In the event of physical contact, injuries may occur due to improper manual operation of the robot.

Ensure that the robot is only moved manually by the responsible system integrator.
Ensure that no unauthorized persons are in the working and danger area of the robot.
Ensure that no pointed or sharp-edged tools or devices are mounted to the robot.

Personnel: System integrator

Requirements

The robot is in manual operating mode.

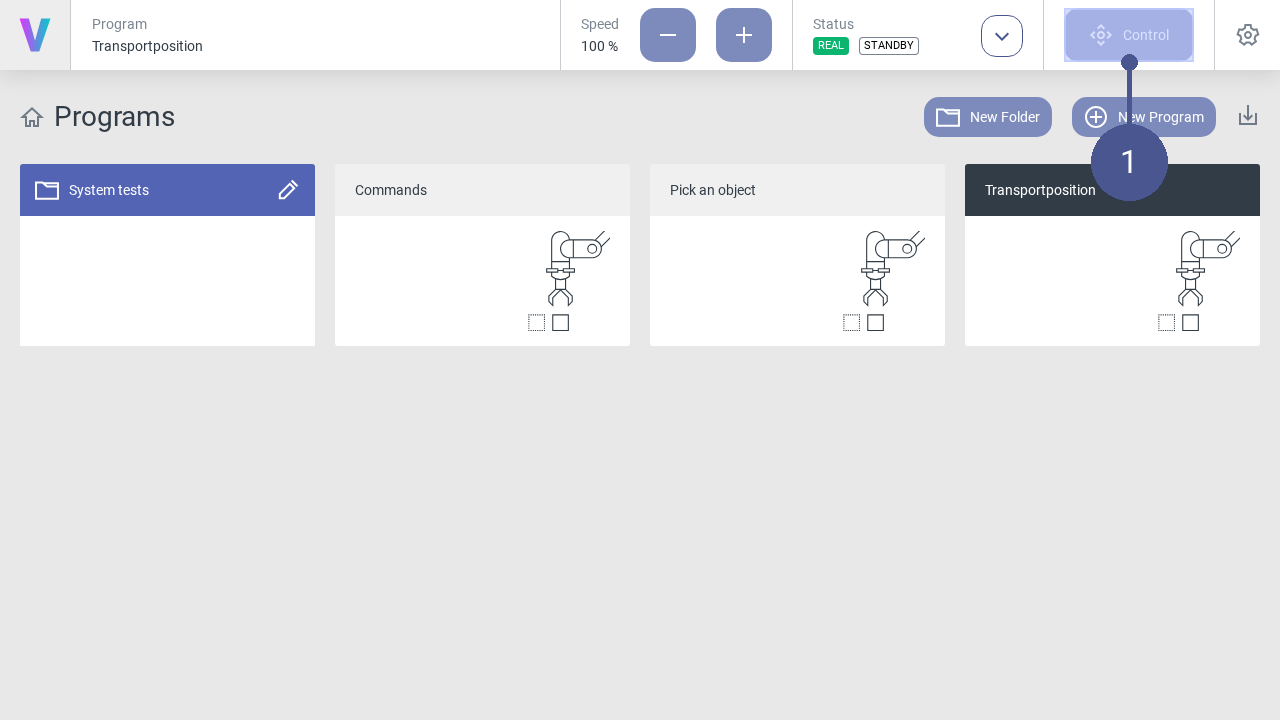

Click Control in the navigation bar (Fig. 33/➊).

Note

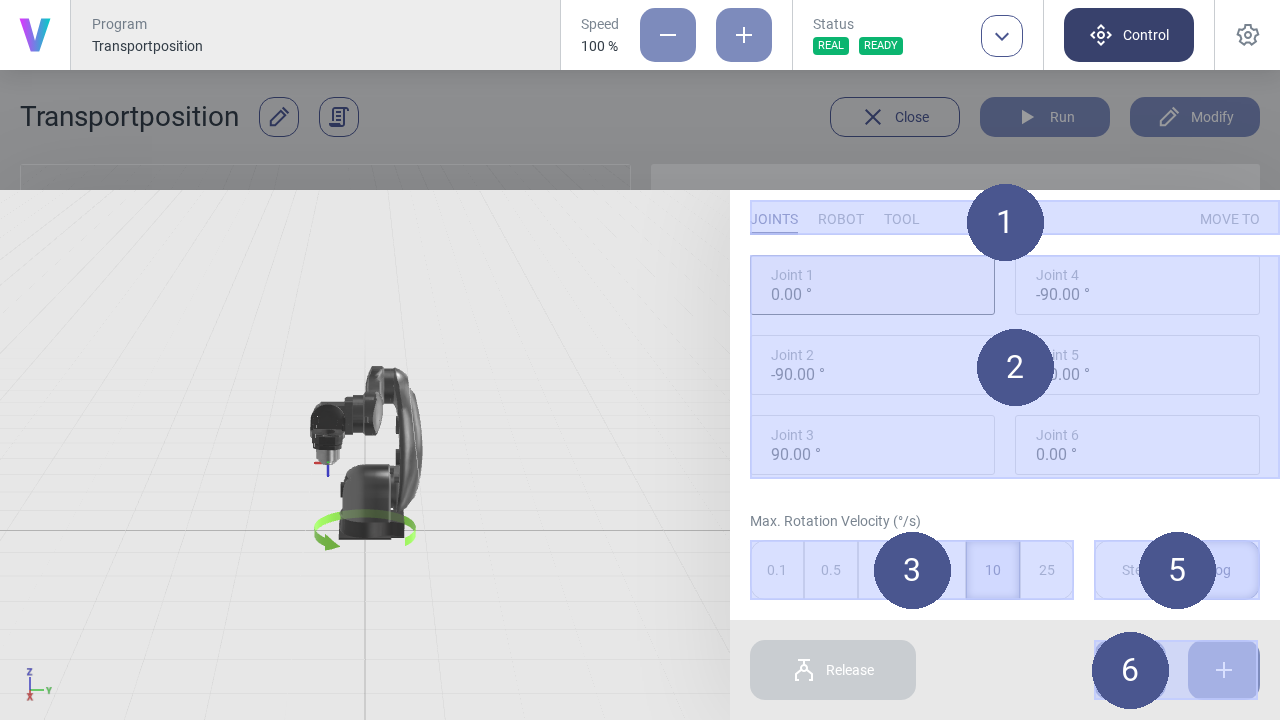

The control menu opens (Fig. 34).

Select the desired coordinate system from the tabs (Fig. 34/➊).
Select the axis for which a movement is to be executed (Fig. 34/➋).
Select the jogging method (Fig. 34/➎):

Step (Step-Jogging)
The robot moves step by step along the selected axis.
Jog (Jogging)
The robot moves continuously along the selected axis.

Select angle length and angular velocity (Fig. 34/➌).
Click the plus or minus button to move the robot forward or backward along the selected axis (Fig. 34/➏).

Note

Move robot

Press and hold the plus or minus button to move the robot in a continuous motion while jogging.

To open or close the gripper unit connected to the media flange, click Open or Close (Fig. 34/➍).

Move robot to input pose

The robot can be manually moved to a specific target pose. Therefor, the target pose needs to be entered into the input fields.

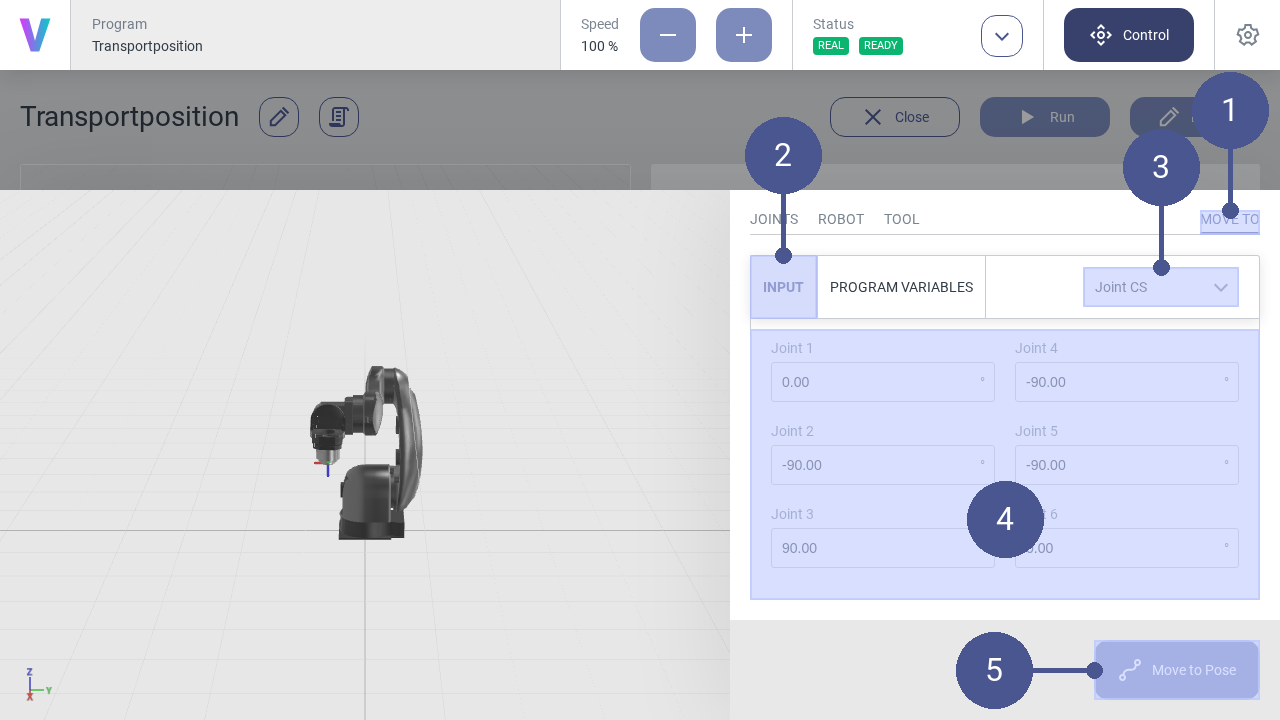

Open the control panel.
Navigate to MOVE TO (Fig. 35/➊) and select INPUT (Fig. 35/➋).
Select the coordinate system of the target pose (Fig. 35/➌).
Enter the target pose in the input fields (Fig. 35/➍).
Press and hold the Move to Pose button until the target pose is reached (Fig. 35/➎).

The robot is now at the target pose.

Move robot to program variable

The robot can be manually moved to a specific program pose variable. Therefor, the program variable needs to be selected first.

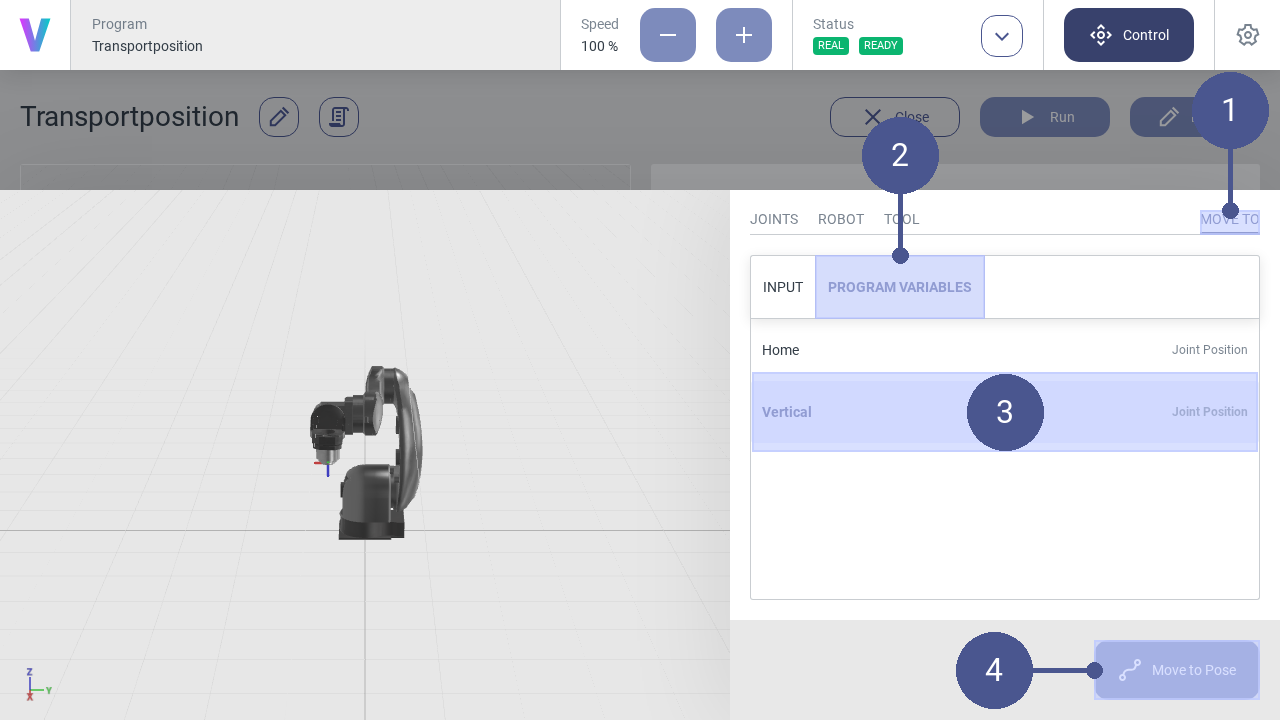

Open the control panel.
Navigate to MOVE TO (Fig. 36/➊) and select PROGRAM VARIABLES (Fig. 36/➋).
Select a variable (Fig. 36/➌).
Press and hold the Move to Pose button until the target pose is reached (Fig. 36/➍).

2.2.10. Reset system after software failure

The following section describes how to restart the robot after an emergency stop or after a change of the operating state.

Reset software failures.

Personnel: Operator

A software error can, for example, be triggered by system errors or incorrect movement of the robot.

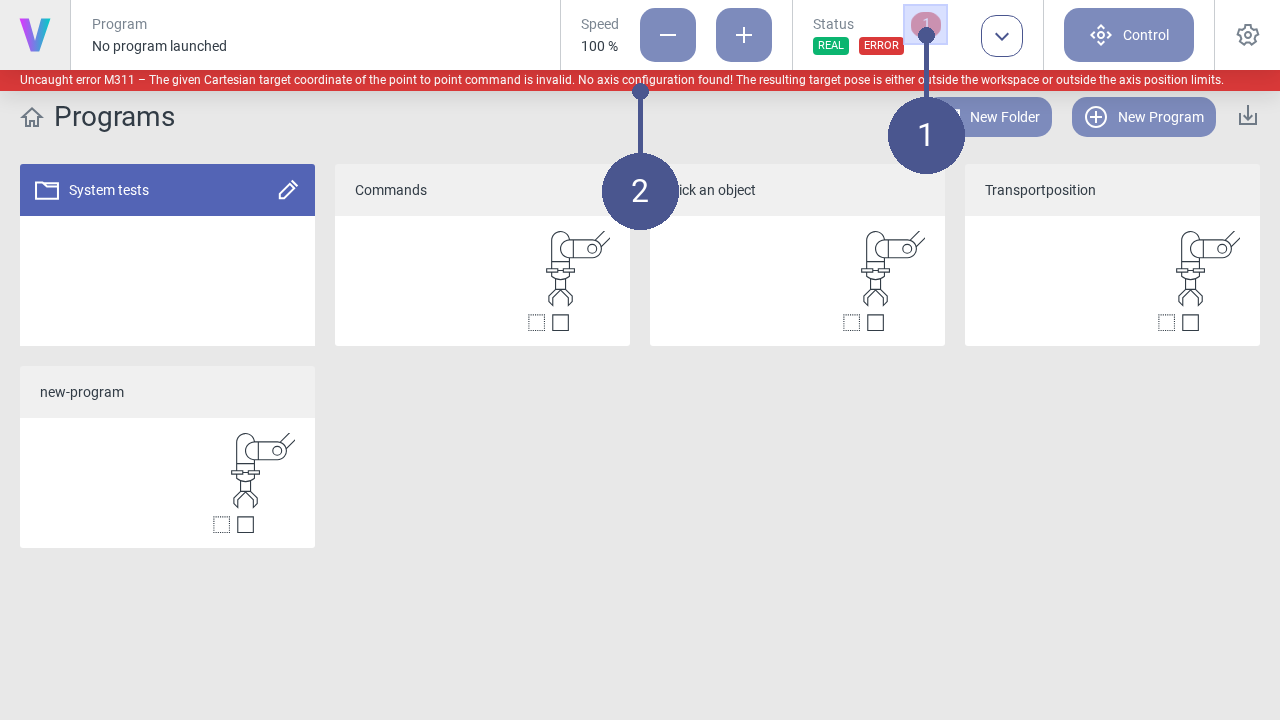

When a system error is triggered, a notification appears in the status bar (Fig. 37/➊) and the error message is displayed in the notification bar (Fig. 37/➋).

Open the status page and view details of the error message in the log (Fig. 38/➊).

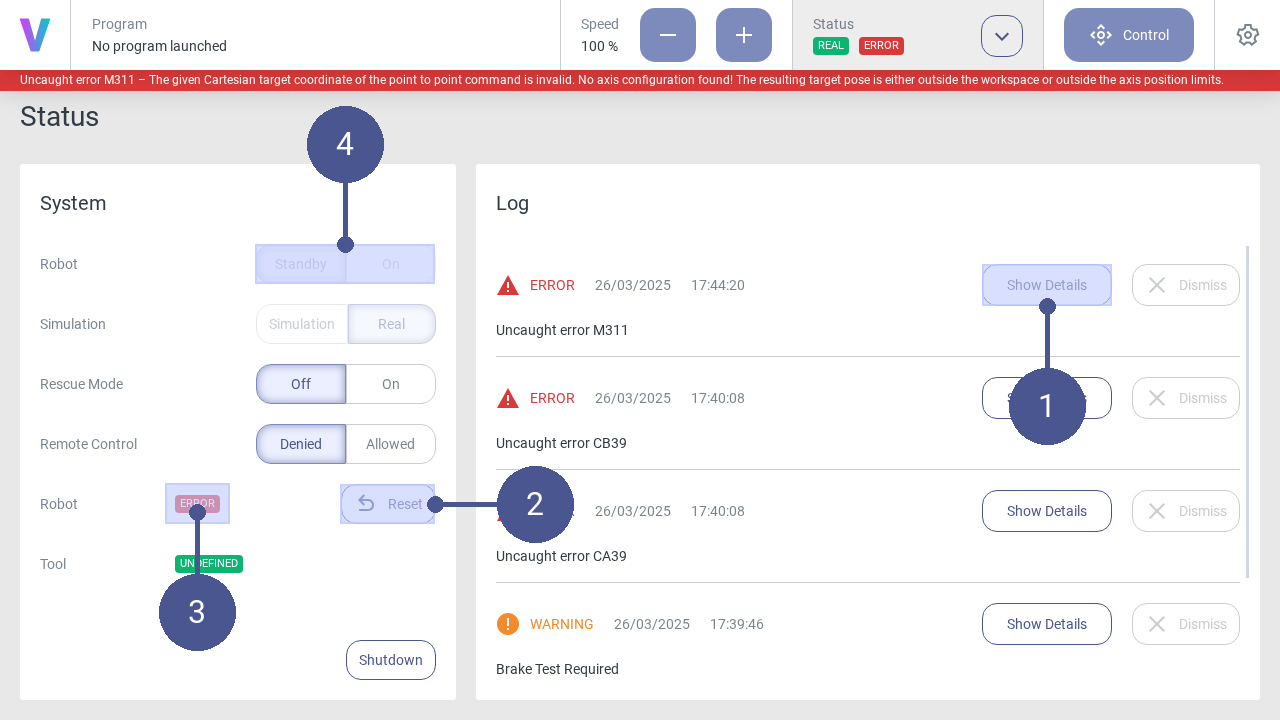

Click Reset (Fig. 38/➋). The robot is set back to the Standby status (Fig. 38/➌). This can take a few seconds.
The robot can then be switched on again (Fig. 38/➍).

Other errors may be triggered during the process. In this case, follow the instructions in the log.

2.2.11. Create a Move to command

Personnel: System integrator

Requirements

A new program has been created.

After creating a new program, the program editor opens automatically. Logic can be added to the program by adding individual commands via drag and drop or by clicking.

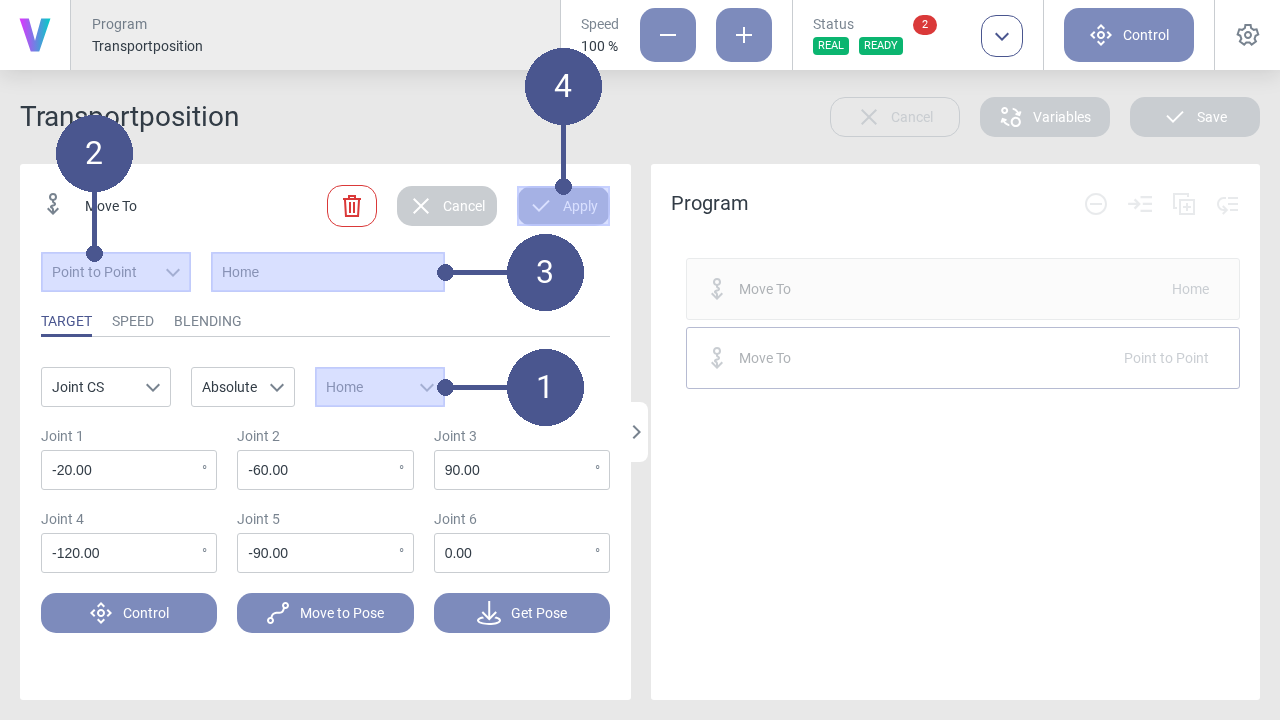

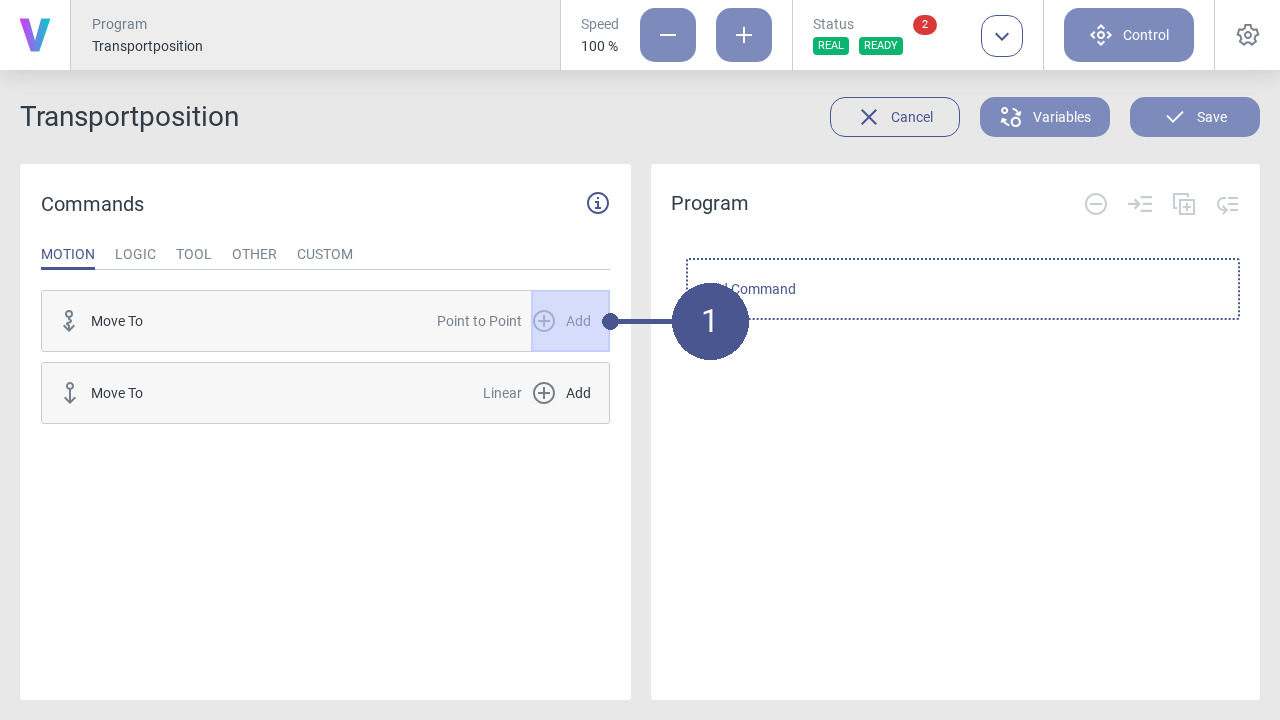

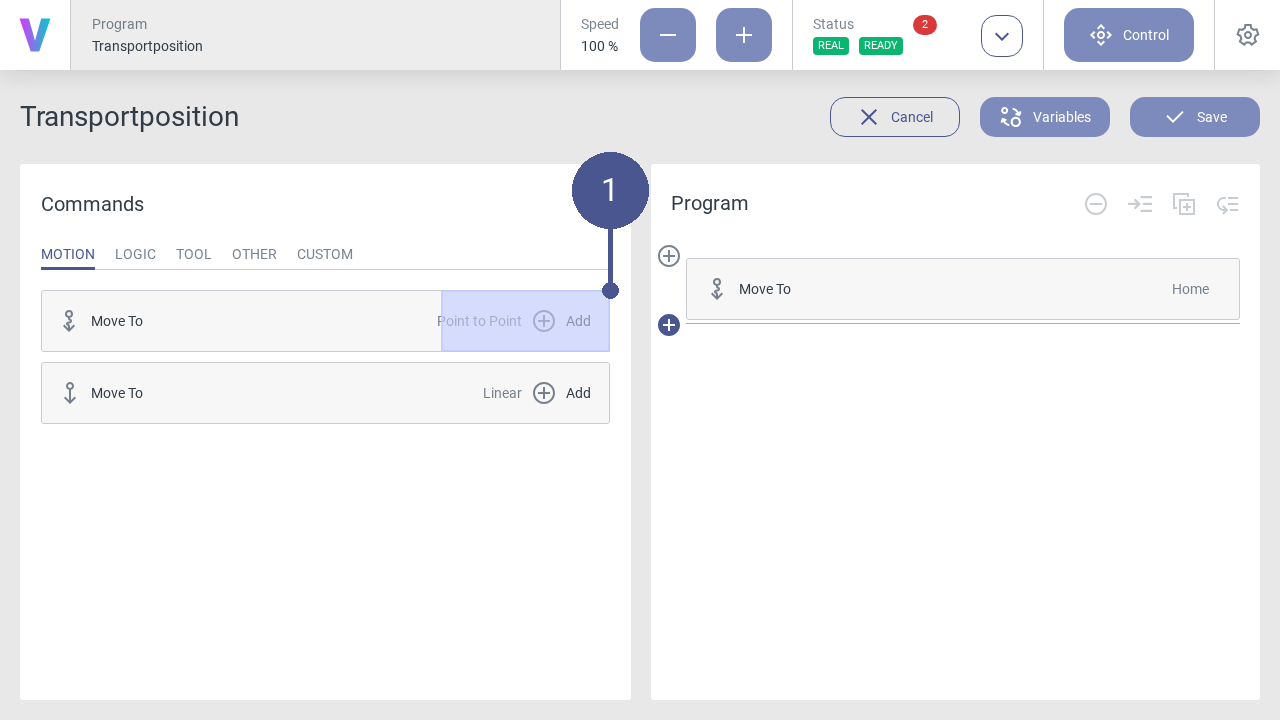

Click the Add button of the Move to - Point to Point command in the program menu to open the window for a new motion command (Fig. 39/➊).

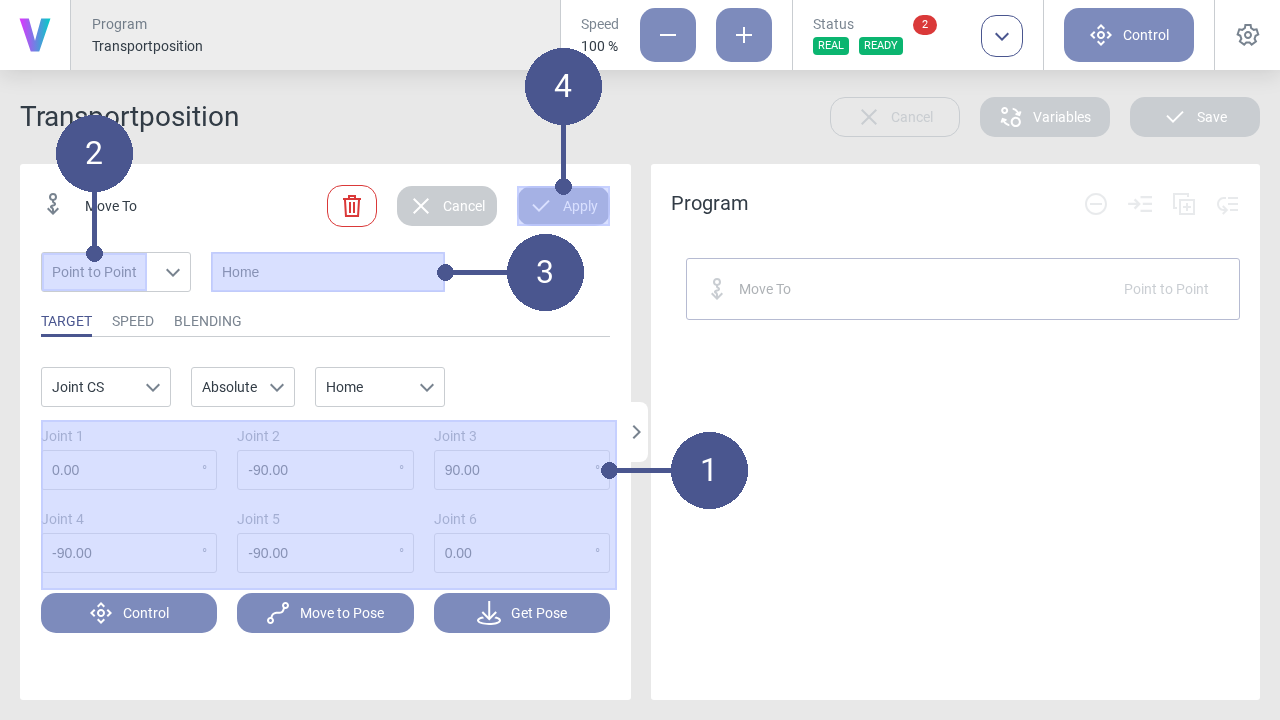

Fig. 40 Move-To command: **Home position**

Parameterize the motion command for the home position according to the values (Fig. 40/➊).
Make sure that the Point to Point entry is selected in the drop-down list (Fig. 40/➋). Individual adjustments are possible in the tabs.
Enter the name of the motion command (e.g. Home) (Fig. 40/➌).
Save the command with Apply (Fig. 40/➍).

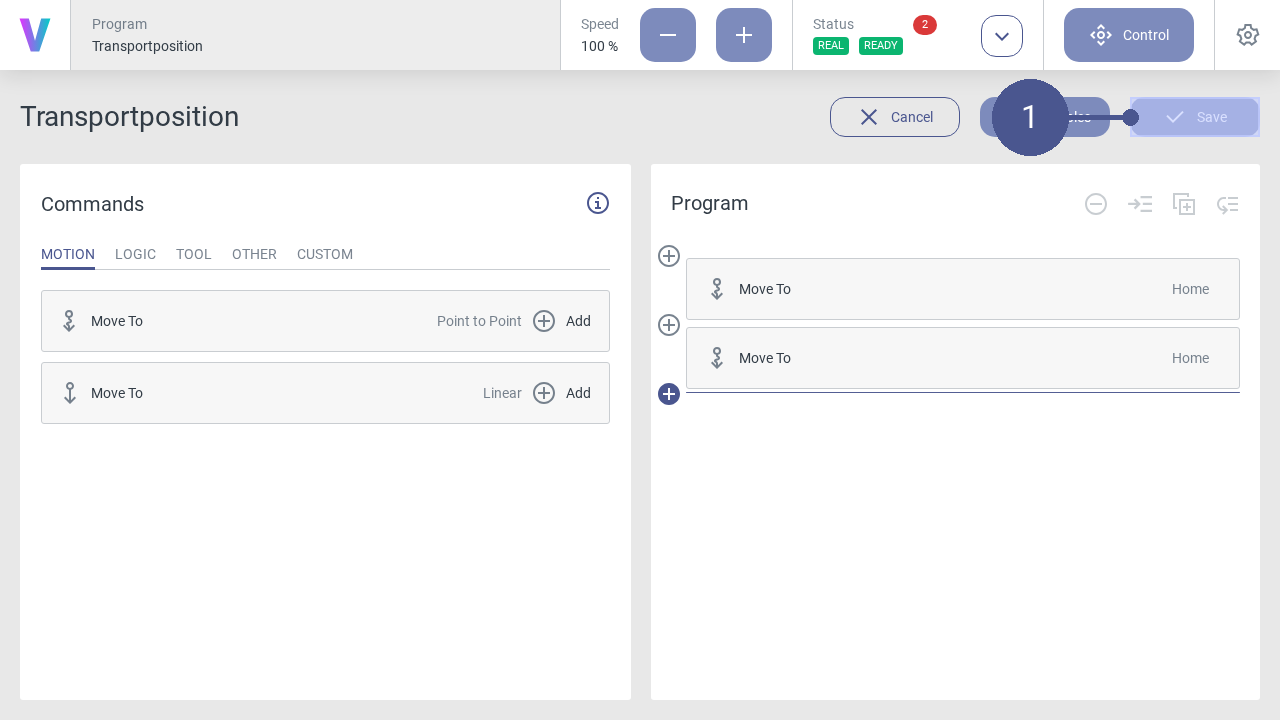

When your program is final, click on the Save button (Fig. 41/➊).
The new program can be loaded and executed in the overview screen. Before running your program on a real robot, it’s possible to simulate your path with the digital twin first. To check and switch the mode, have a look on the status screen. While running the program a digital twin of the robot is shown.

Create variable of robot pose

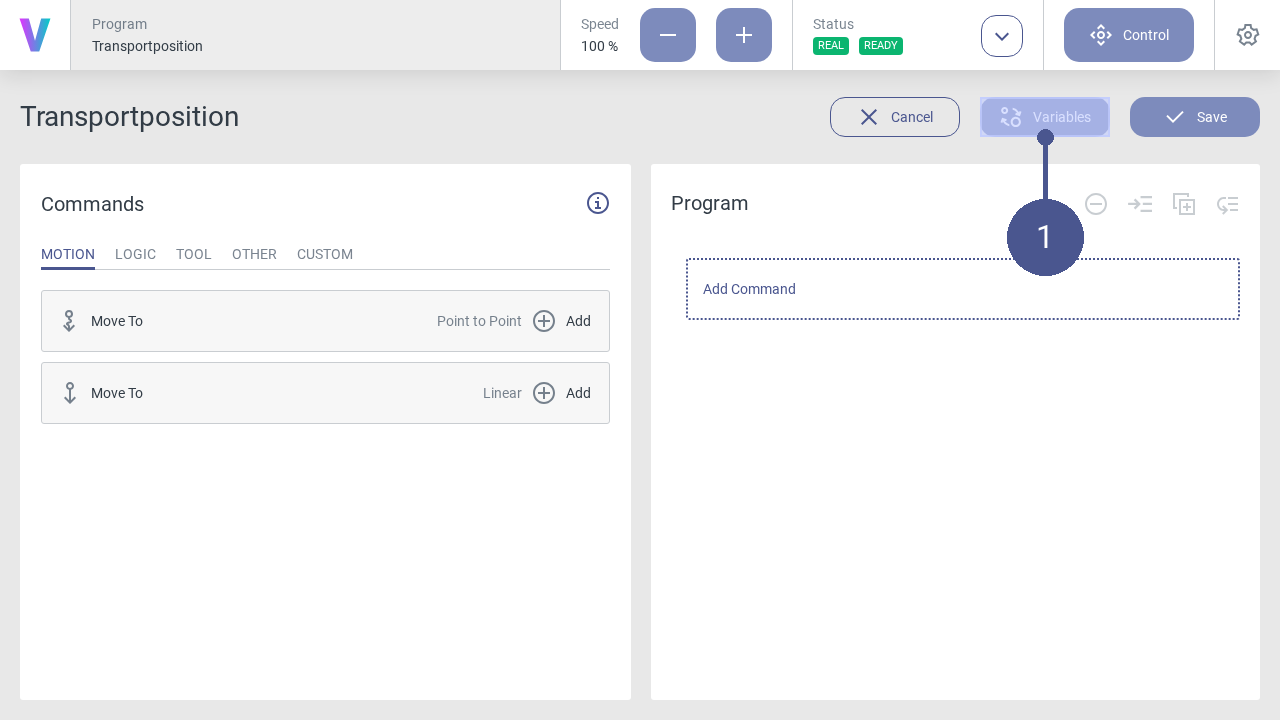

Click the Variables button in the program menu to open the window for managing and creating variables (Fig. 42/➊).

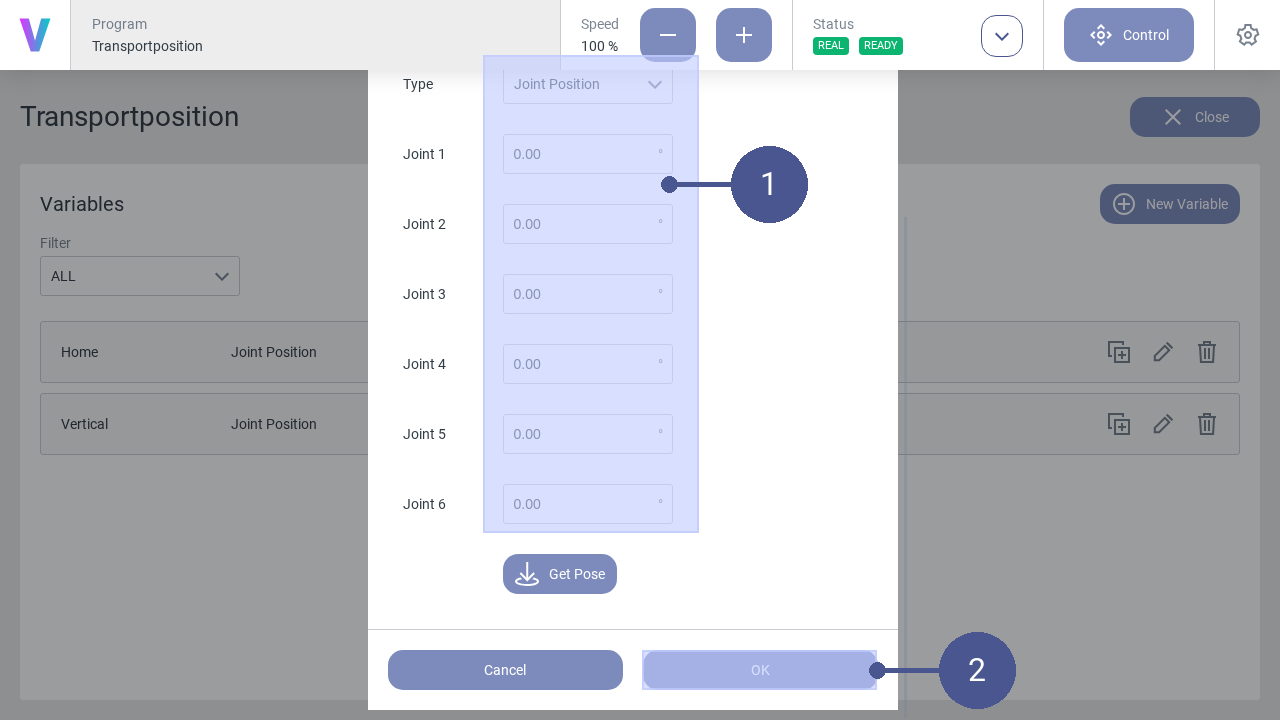

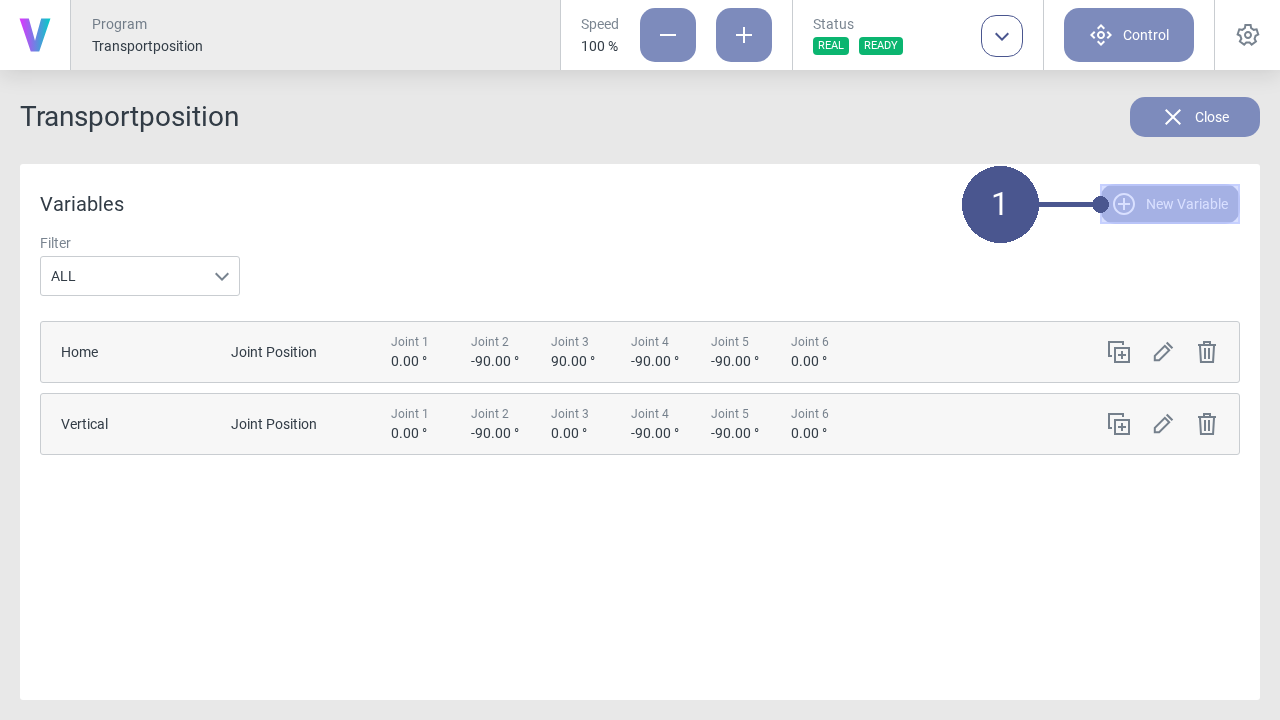

On the variables page, click the New Variable button to create a new variable (Fig. 43/➊).

Select the Type Joint Position and parameterize the variable for the position (Fig. 44/➊).
Enter the name of the variable (e.g. Home).
Save the variable with OK (Fig. 44/➋)

Click on the Add button in the program menu to open the window for an additional motion command with the created variable (Fig. 45/➊).

Use the drop-down list to select the variable Home (Fig. 46/➊). Afterwards the coordinates appear in the fields of the axes.
Make sure that the Point to Point entry is selected in the drop-down list (Fig. 46/➋).
Enter the name of the movement command (Fig. 46/➌).
Save movement command with Apply (Fig. 46/➍).

Click on the Save button (Fig. 47/➊).

To start the program, click on the Run button (Fig. 48/➊)
Click on the Control button in the navigation bar to open the control menu (Fig. 48/➋).

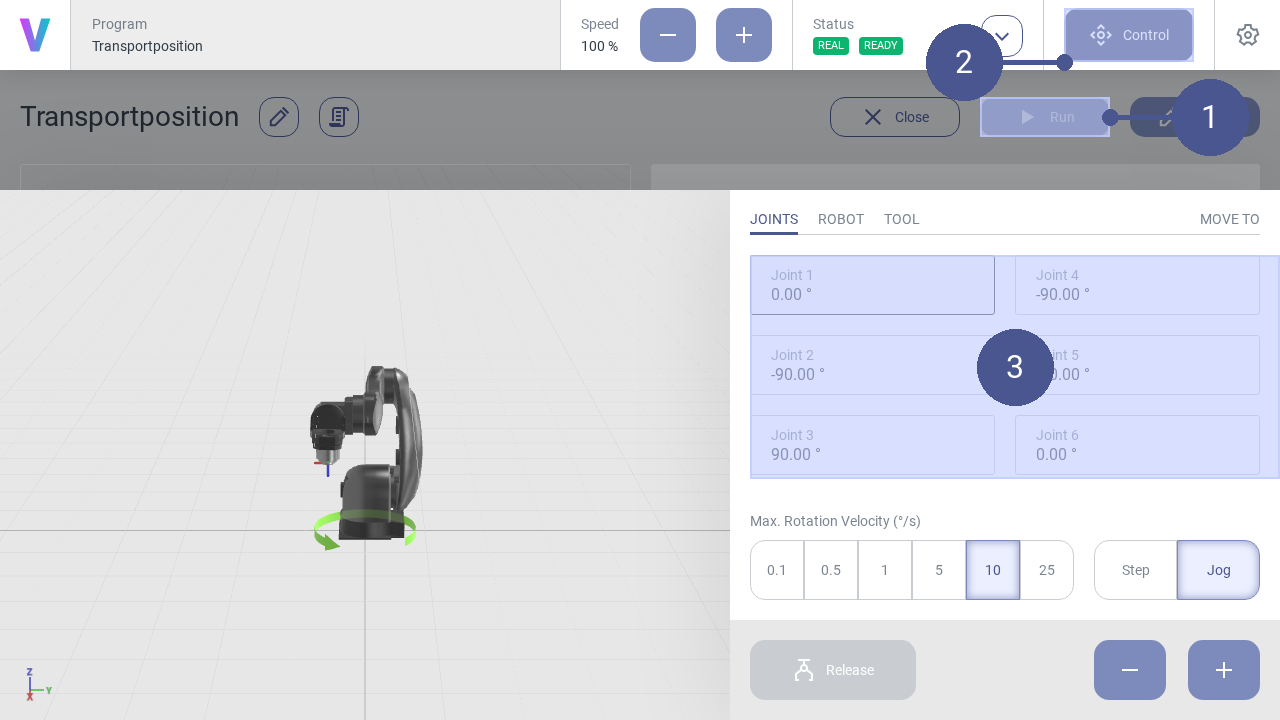

Check the axis coordinates of the robot to ensure that the transport position has been reached (Fig. 48/➌).

2.2.12. Verify position

Personnel: Programmer, safety engineer, system integrator

If the robot has not been switched off properly (e.g., power supply to the robot controller has been interrupted), the reference position may be lost. In this case, the current position of the robot must be verified at the next restart. The pop-up window for position verification is automatically displayed in the user interface.

Requirements

The robot is in the manual operating mode.
No program is executed.

2.2.13. Activate Remote Control

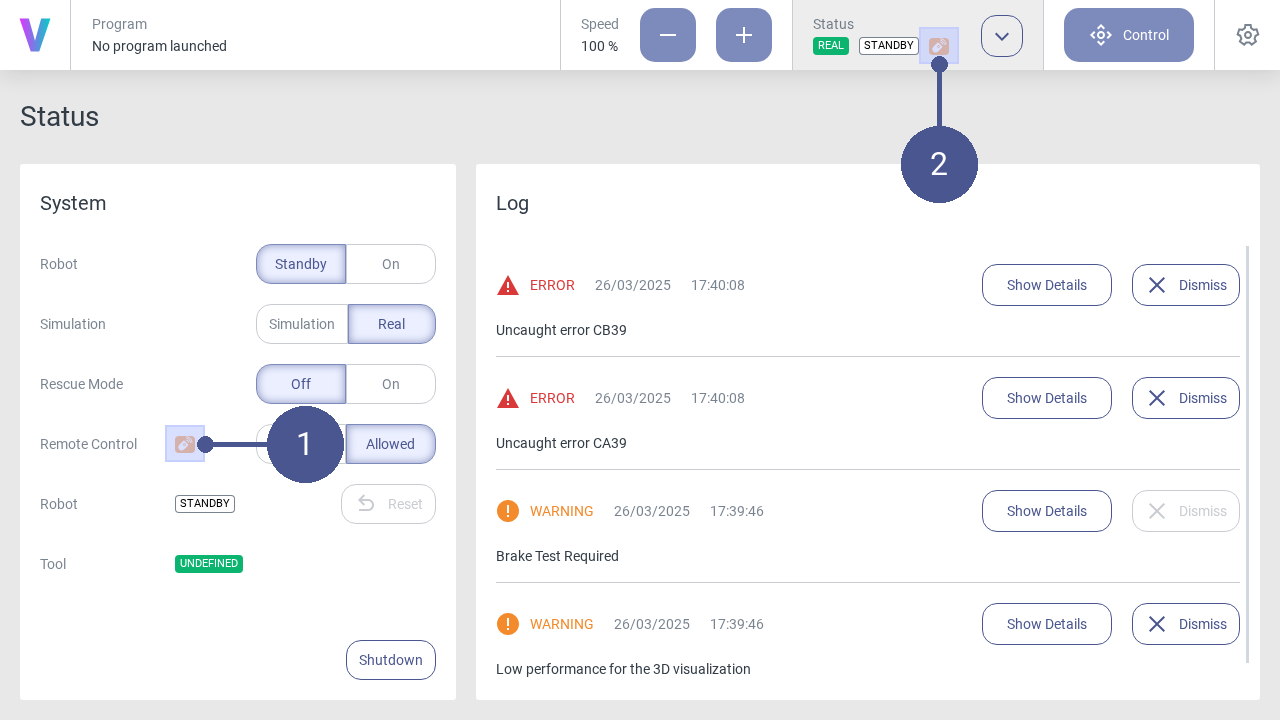

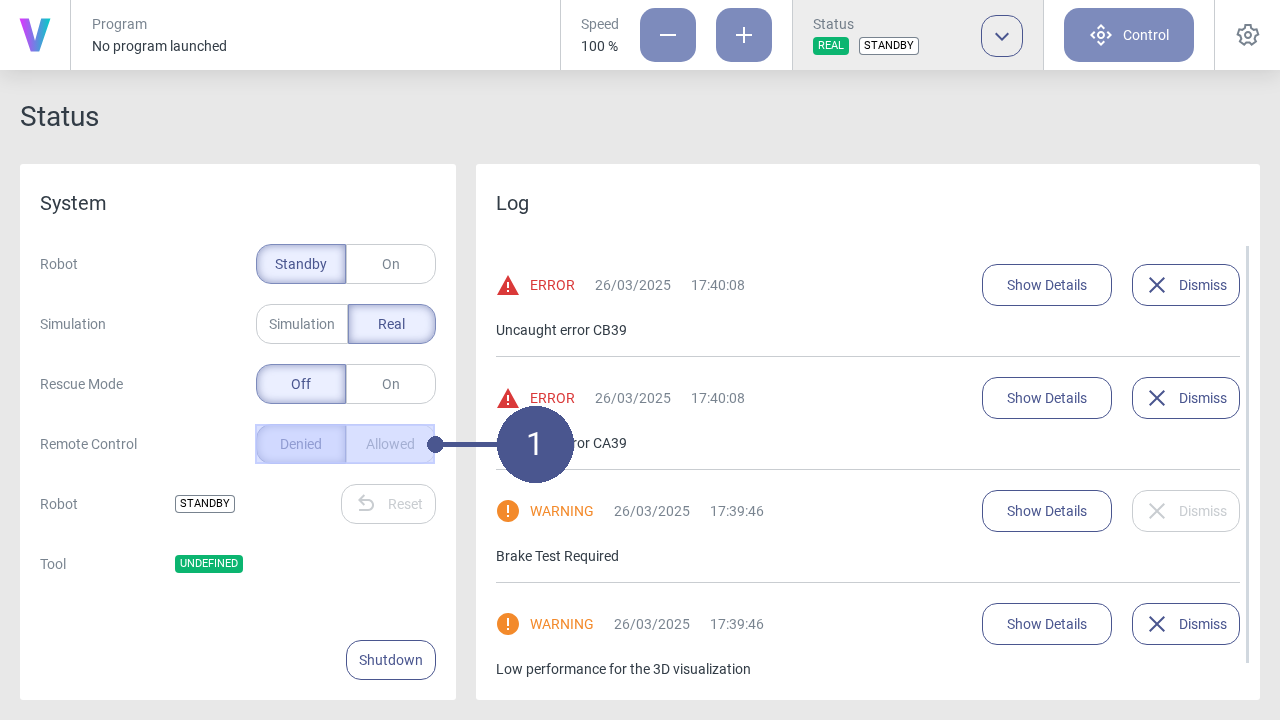

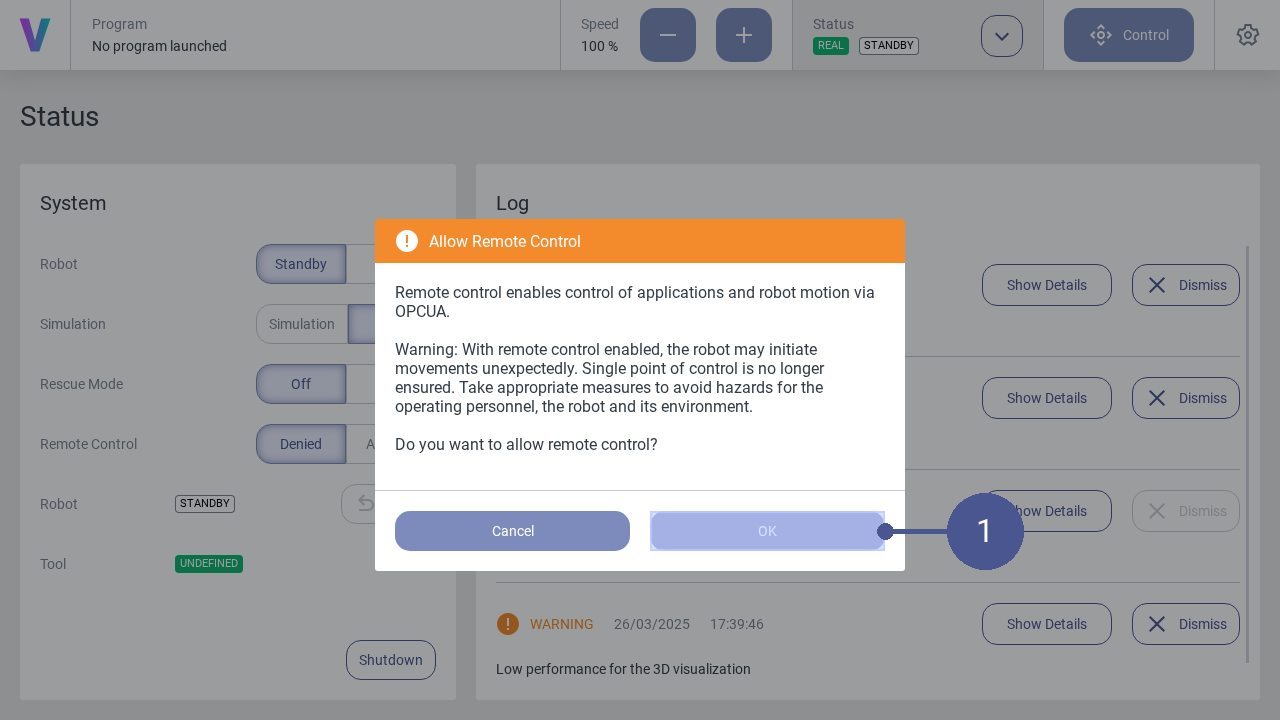

This chapter describes the activation of the remote control interface (OPC UA) via the operator.

For examples of how to use the external OPC UA server in an application, see chapter Using the External OPC UA Server

Note

The external OPC UA server can be reached via the robot’s IP address 192.168.1.1 with the port 4840.

Personnel: System integrator

Warning

Risk of injury due to unexpected robot movement in remote mode!

When remote mode is active, the robot can be operated via an external remote control, e.g. a PLC or a Python client. This means that a single point of control is no longer guaranteed and there is a possibility that robot movements are commanded from an external source (by people or machines). Before activating the remote mode, ensure:

The system integrator has identified the risks arising from remote access and taken them into account in his risk assessment of the robot application.
The system integrator has taken appropriate measures to minimize the risks.
The system integrator has actively approved remote access.
There is no person in the danger zone of the robot.

Functions in remote mode

The following robot functions are available in remote mode:
